| Video |
| Image Sensor |
1/1.6” CMOS |
| Max. Resolution |
3520 x 3520 |
| Scanning Mode |
Progressive Scan |
| Lens Type |
Fixed-focal |
| Focal Length |
1.7mm |
| Aperture |
F2.0 |
| Iris Control |
Fixed Iris |
| Angular Field of View |
180º(H), 180º(V), 180º(D) |
| Min. Illumination |
Color : 0.13 lux @ F2.0B/W : 0 lux @ (IR LED ON) |
| Dynamic Range |
120dB (True WDR) |
| Electronic Shutter Speed |
Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night |
Yes (ICR) |
| IR Distance (LEDs) |
20m / 65.6ft (4ea)- Zone Adaptive IR |
| Image Setting |
Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control), 3DNR Level, WDR Level |
| Backlight Compensation |
BLC |
| Mirroring / Pivot |
- |
| De-fog |
Yes |
| Privacy Masking |
8 Zones |
| Intelligent Video |
A-cut SupportObject Metadata: Human, VehicleObject Attribute: Human[Gender, Age, Bag, Hat, Colors], Vehicle[Car, Truck, Bus, Bike(Bicycle, Motorcycle), ETC, Colors]IDLA: Object Detection, Intrusion, Loitering, Line CrossingETC: Video Motion Detection, Active Tampering Alarm |
| Viewing Composition |
1O, 1P, 1P2R, 2P, 4R, 1O7R |
| Video Out |
- |
| Network |
| Video Compression |
H.265, H.264 (MP), M-JPEG |
| Intelligent Codec |
Yes |
| Bitrate Control |
H.264 - CBR / VBR, H.265 - CBR / VBR |
| Audio Compression |
Opus, ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio |
Yes |
| IP Camera Protocol |
DirectIP 2.0, ONVIF Profile S/T/M/G - TBD |
| Max. Frame Rate |
30ips : 3520 x 3520 |
| Supported Resolution |
3520x3520, 3520x1760, 2640x2640, 1760x1760, 880x880, 880x440 |
| Multi-video Streaming |
Quadruple Streaming |
| Network Protocols |
DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security |
Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet |
RJ45 (10/100/1000BASE-T) |
| Recording Session Buffer (NLTSrec) |
Yes (Up to 60MB) |
| Edge Storage |
micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event |
| Trigger Event |
Motion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing |
| Event Notification |
Remote S/W, Email (with Image) |
| Audio Alarm |
Yes |
| Audio In / Out |
1(Built In MIC)+1 / 1 |
| Alarm In / Out |
1 / 1 |
| Environmental |
| Vandal Proof Casing |
IK10 |
| Outdoor Ready |
IP67 |
| Operating Temperature |
-40°C ~ 55°C (-40°F ~ 131°F) |
| Operating Humidity |
0% ~ 90% |
| Electrical |
| Power Source |
12VDC, PoE (IEEE 802.3at Class 4) |
| Power Consumption |
12V=, 1.9A, 22.8W PoE, IEEE 802.3at(Class 4), 24W |
| Approval |
UL, FCC, CE, KC |
| Mechanical |

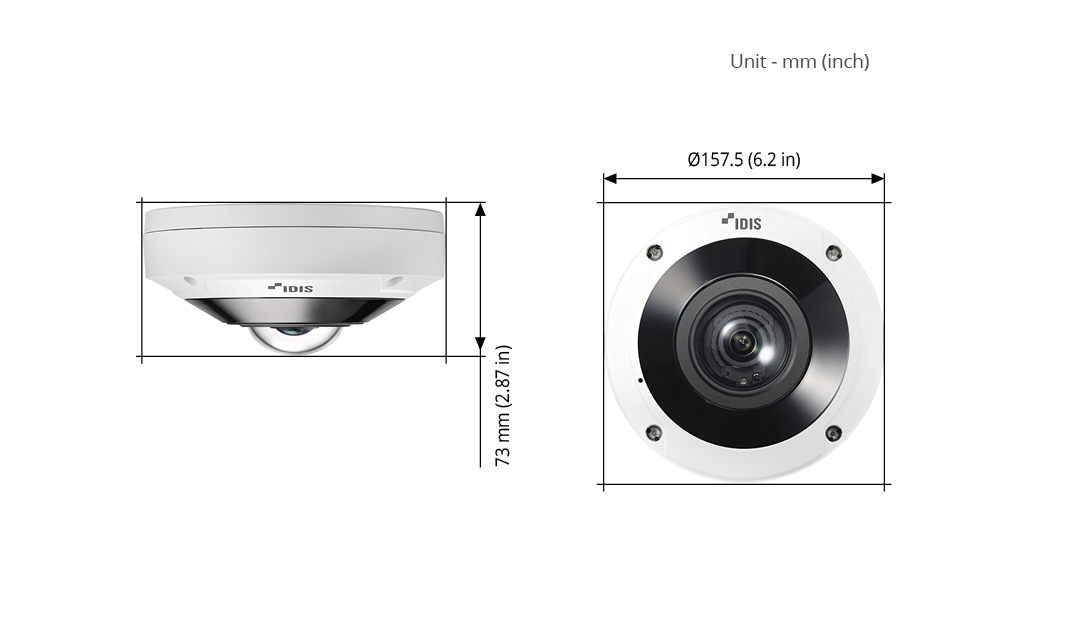

| Dimensions |
Ø157.5 x 73mm(Ø6.2" x 2.87") |
| Weight |
1.1kg (2.42lb) |
Artificial Intelligence
13MP
Fixed Lens
Weather Proof
IR LED
AI Embedded
NDAA Compliant
TAA Compliant
