Single Port High-PoE Injector
Reliability
Powerful Performance
Easy Installation
Scalability
| Function | |
| Network Connection | RJ45 x1 (Data-in), RJ45 x1 with PSE |
| PSE Power | 55V DC, Max. 75W |
| Transmission Speed | 10/100/1000Mbps |
| Distance | Up to 100m(328’) |
| Environmental | |
| Operating Temperature | -32°C ~ +74°C (-29.2℉ ~ 165.2℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Input | 100 ~ 240V AC, 50/60Hz, 1.5A |
| Approval | FCC, CE, RoHS |
| Mechanical | |

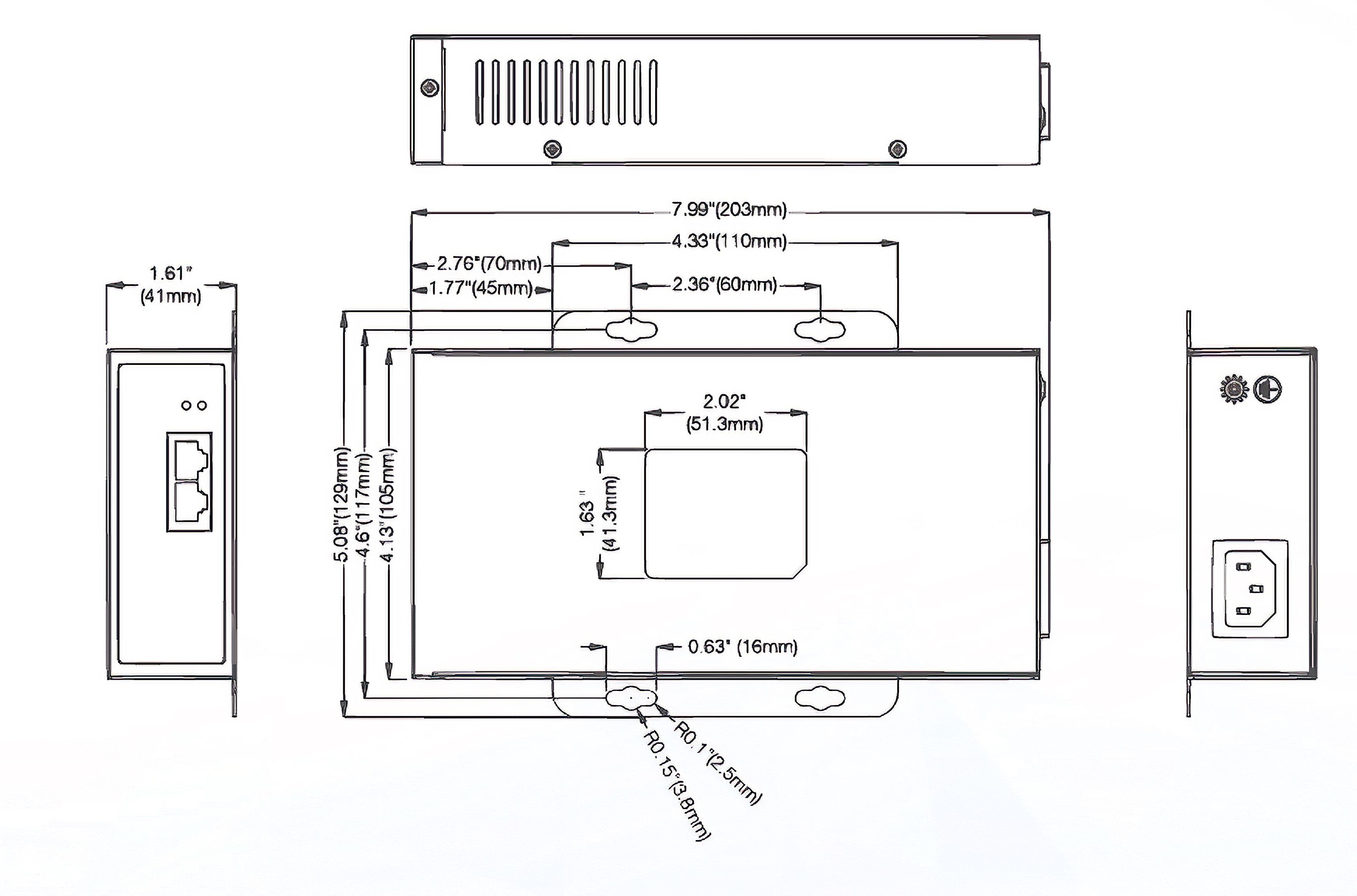

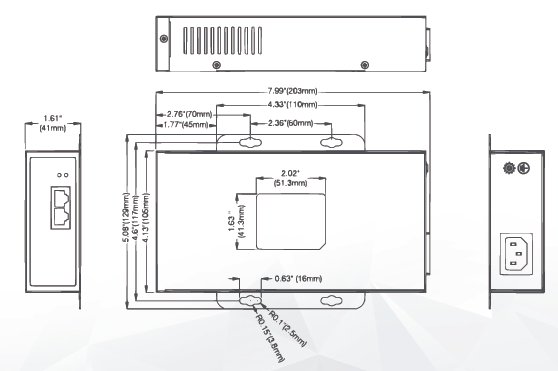

| Dimensions (W x H x D) | 129mm x 41mm x 203mm (5.08" x 1.61" x 7.99") |
| Weight | 760g (1.6lb) |
| INSTALLATION ENVIRONMENT | ACCESSORY CONFIGURATION |
|---|
| Datasheet DP-P110A | Automatically Generate Datasheet | Download |
