DirectCX 4channel H.265 Hybrid Recorder | NDAA & TAA Compliant
4Ch
UHD Display
DirectCX
FEN Service
Quickly Backup
Redundancy Protection
Scalability
NDAA Compliant
TAA Compliant
| Video | |
| Video Inputs | 4 Channels (4 BNC, 1 RJ45 : Up to 2 IP Cameras Switchable) |
| Supported Camera | HD-TVI : 5MP, 4MP, 1080P, 720P AHD : 5MP, 4MP, 1080P, 720P CVBS : NTSC / PAL IP (DirectIP, IDIS) : Up to 12MP(Depending on IP Camera) |
| Video Outputs | 1 HDMI, 1 VGA |
| Display Resolution | HDMI : 3840 x 2160, 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200 VGA : 1920 x 1080, 1680 x 1050, 1600 x 1200 |
| Display Speed | Up to 120ips |
| Digital Zoom | x2 ~ x12 |
| Recording | |
| Recording Resolution | 2560x1920, 2560x1440, 1920x1080, 1280x720, 720x576, 720x480, 640x360, 720x288, 720x240, 360x288, 360x240 |
| Video Compression | Analog : H.265, Intelligent Codec IP : H.265, H.264, Intelligent Codec |
| Recording Mode | Time-Lapse, Event, Pre-Event, Panic |
| Trigger Event | Motion, Tampering, Video Loss, Alarm In, Network Alarm, Text-in, System, Etc. |
| Playback | |
| Performance | 4ch synchronous playback |
| Search Mode | Time-lapse, Event Log, Text-in |
| Digital Zoom | x2 ~ x12 |
| Storage | |
| HDD | SATA x 2 |
| Total Capacity | 12TB=6TB x2 |
| Network | |
| Client Connection | Fast Ethernet x1 |
| Transmission Speed | 50Mbps |
| Event Notification | Email (attach clip cbf, mp4), Callback to Remote S/W, Push (IDIS Mobile), FTP, HTTP |
| Two-way Audio | Yes |
| Interface | |
| Audio In / Out | 4 RCA / 1 RCA + 1 HDMI |
| Alarm In / Out | 4 / 1 |
| Alarm Reset In | - |
| Serial Interface | RS232 / RS485(Terminal Block) |
| USB | USB 2.0 x 2(Front x 2) |
| User Interface | Mouse, Network Remote Keyboard |
| General | |
| Operating System | Embedded Linux |
| Environmental | |
| Operating Temperature | 0°C to 40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Input | Adaptor Input : 100-240V AC, 50/60Hz, 1.5A, Output : 12V DC, 5A |
| Power Consumption | 12V=, 1.83A, 21.96W |
| Approval | FCC, CE, KC |
| Mechanical | |

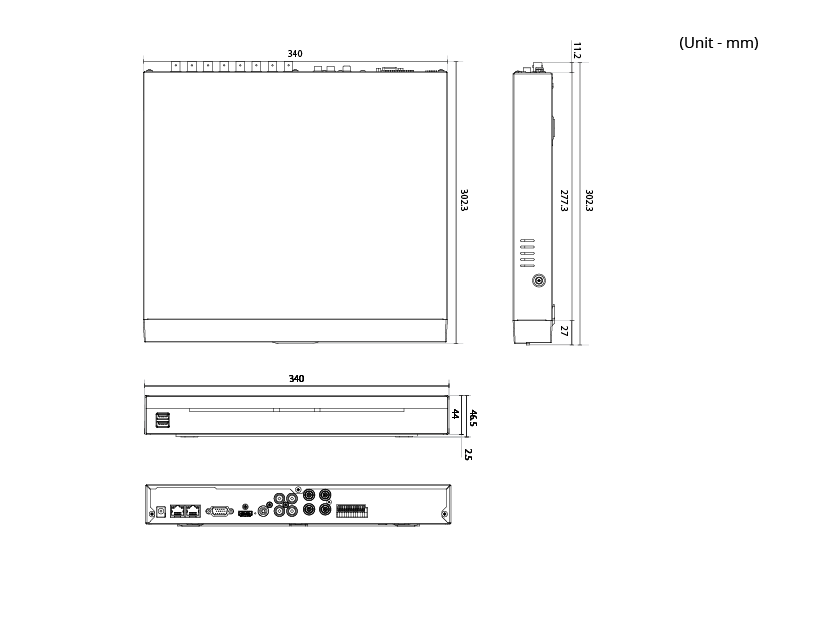

| Unit Dimensions (W x H x D) | 340mm x 44mm x 302.3mm (13.4" x 1.7" x 11.9") |
| Unit Weight | 3.16 kg (with 2 2TB HDD) |
| INSTALLATION ENVIRONMENT | ACCESSORY CONFIGURATION |
|---|
