IDIS GLOBAL

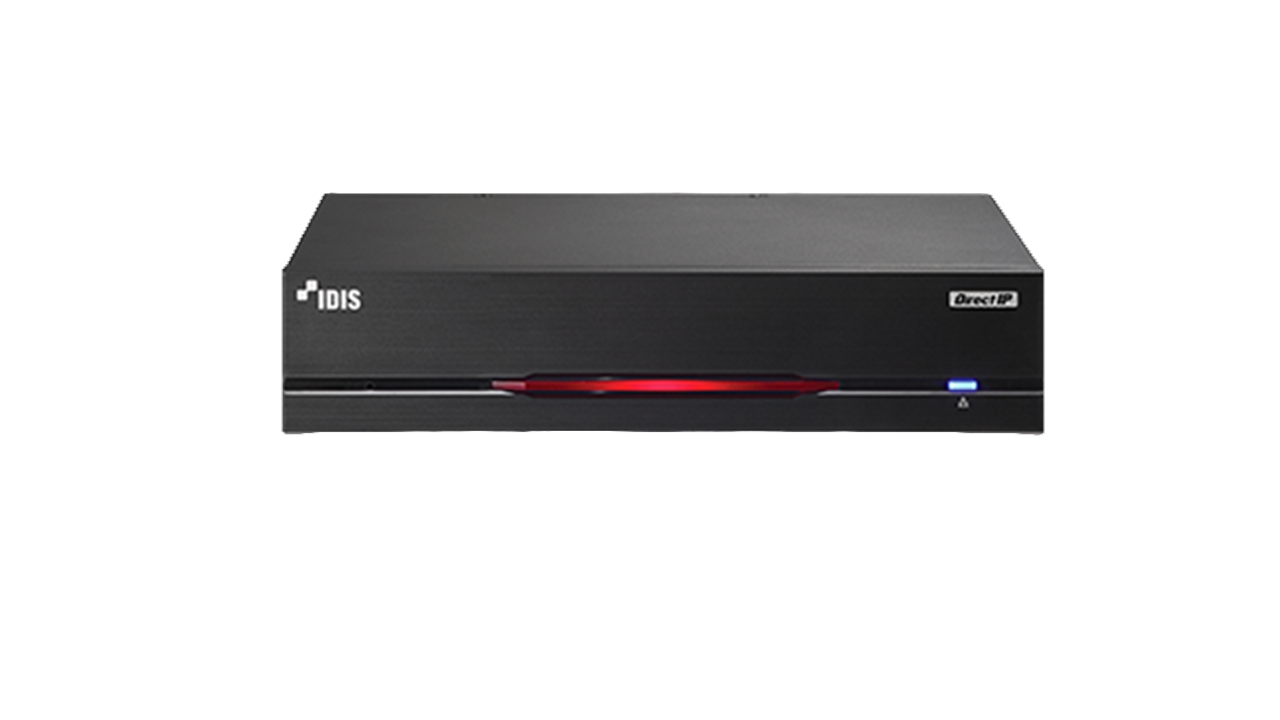

25-0100 Mobile AI Box

4Ch AI Box for Transit | NDAA & TAA Compliant

  • Simply connect to a compatible IDIS NVR
  • Supports 4ch IP Camera
  • Supports the most advanced IDIS Deep-Learning Analytics (IDLA)
  • Generating real-time event notifications with high accuracy
  • Supports object detection, intrusion, loitering, line crossing, and face detection and crowd detection rules
Video
Video Inputs 4 IP Channels
Supported Device DirectIP NVR
VA Support Object Detection, Intrusion, Loitering, Line Crossing, Face Detection, Crowd Detection
Network
Video Compression H.265, H.264
Network Connection 100M Ethernet x 1 (100Base-TX) with PD
100M Ethernet x 1 (100Base-TX) with PSE (PSE need Adaptor)
Environmental
Operating Temperature 0°C to 40°C (32°F to 104°F)
Operating Humidity 0% ~ 90%
Electrical
Power Input 48V=, PoE
Power Consumption 48V=, 0.8A, 38.4W
PoE, IEEE 802.3at(Class 4), 25W
DC OUTPUT : 48V=, 0.35A MAX
Approval FCC, CE, KC
Mechanical

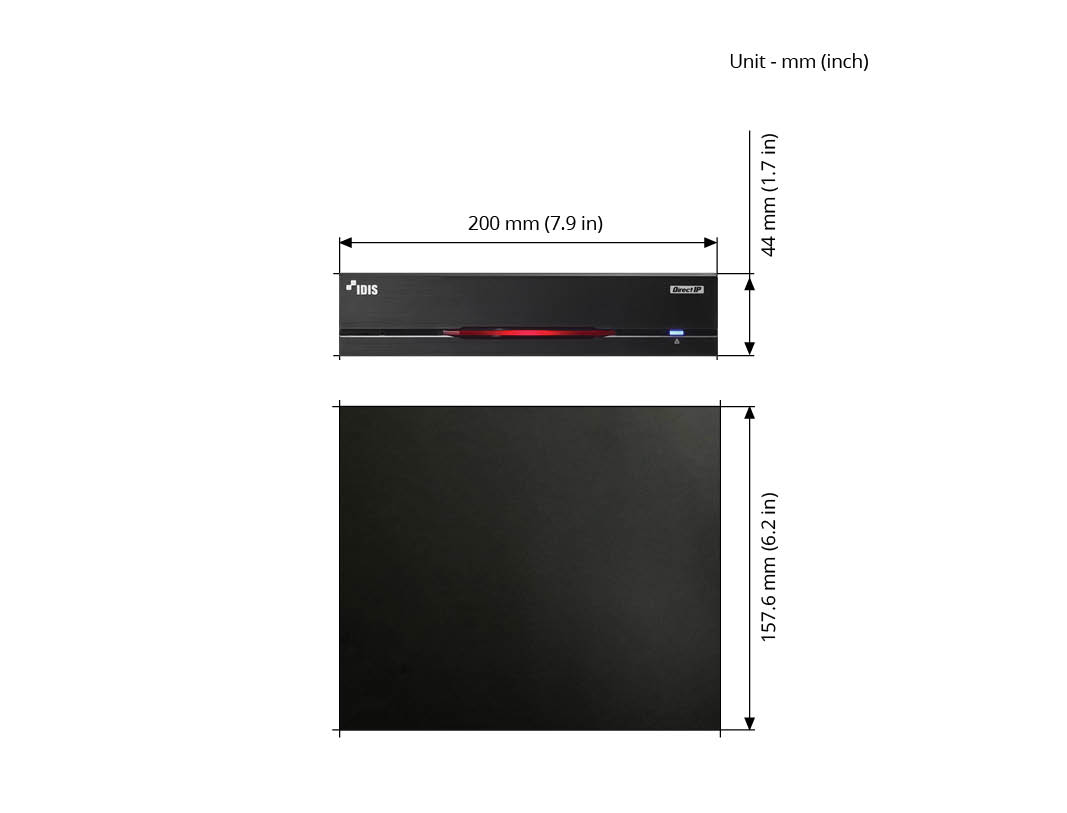

Unit Dimensions (W x H x D) 200mm x 44mm x 157.6mm (7.9" x 1.7" x 6.2")
Unit Weight 0.88kg (1.94 lb)
Installation environment Accessory configuration
A&E Specification 25-0100 A&E Specification v2.9.0 Download
Manual 25-0100 Operation Manual v2.9.0 Download
Software 25-0100 Firmware v2.9.0 Download
Datasheet Mobile AI Box | Automatically Generate Datasheet Download
