2MP Tapered Dome Exterior Camera | NDAA & TAA Compliant
| Lens | 2.8mm Fixed Lens |
| Ceiling Mount | 3 Axis(Gimbal) |
| Side Mount | 3 Axis(Gimbal) |
| HD Video Frame Rate | 1920×1080p @ 30/25 fps (AHD / TVI) |
| CVBS Scanning Frequency | 15.734 KHz (H) 59.94 Hz (V) / 15.625 KHz (H) 50 Hz (V) |
| CVBS Resolution | 1000 TV Lines |
| Total Pixels | 2000(H) x 1121(V) |
| CMOS | 1/2.9" CMOS |
| Scanning System | Progressive |
| Electronic Shutter | 1/60 ~ 1/50.000 sec / 1/60 ~ 1/50.000 sec |
| S/N Ratio | >50dB |
| Sync System | Internal |
| Min. Illumination (Color) | 1.0 Lux |
| Min. Illumination (B/W) | 0.1 Lux |
| IR LED / Sensor | N/A |
| LED Lighting Distance | N/A |

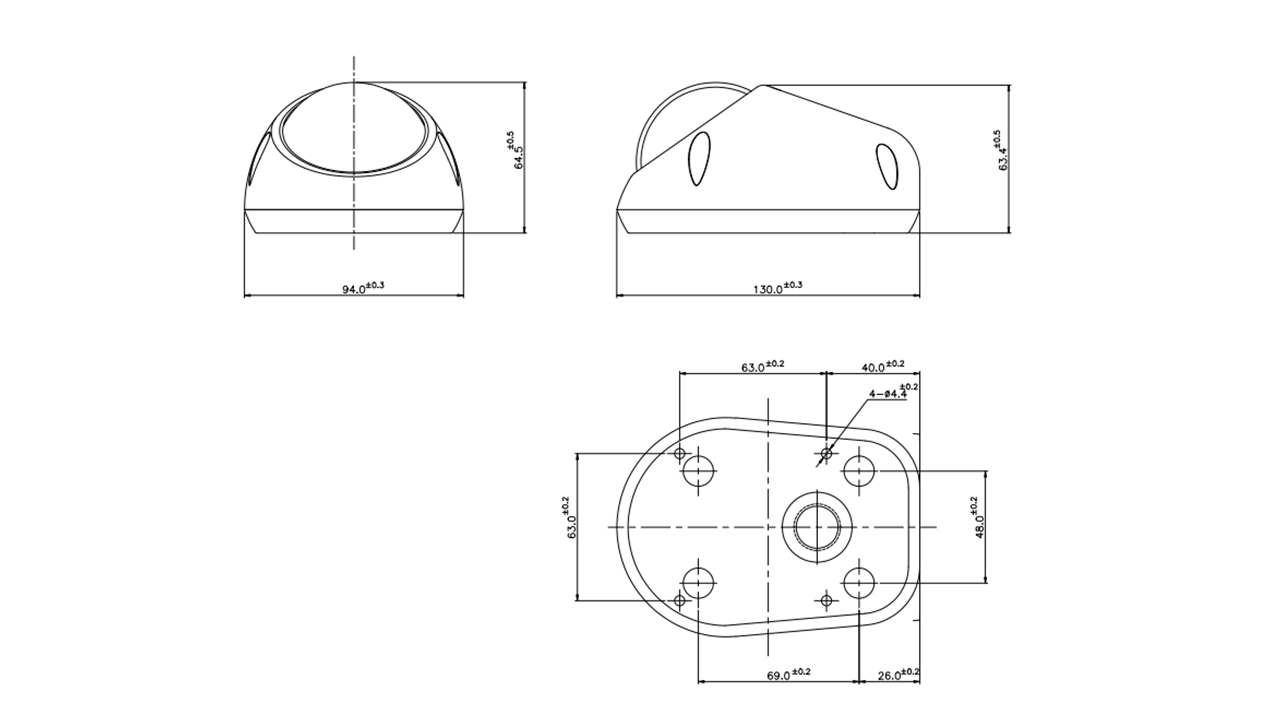

| Dimensions (WxHxD) | 3.7"x2.5"x5.2" (94mm x 63mm x 130mm) |
| Weight Unit / Shipping | 0.85 lbs (385g) / 1.23 lbs (555g) |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Outdoor Rating | IP66 |
| Power Source | 12V DC ± 10% |
| Power Consumption | 2.2W / 0.18A |
| Power Input | 5559 - 02P(Molex) or DC Jack |
| Video Output | 1.0 Vp- p (75 ohm, composite), BNC (Yellow) Connector |
| Audio Output | N/A |
| Auto Exposure | On |
| White Balance | Auto (ATW) |
| Day & Night | N/A |
| 3D-DNR | On |
| Smart IR | N/A |
| AGC | Auto |
| Installation environment | Accessory configuration |
