Lens |
2.8mm Fixed Lens |
Ceiling Mount |
3 Axis(Gimbal) |
Side Mount |
3 Axis(Gimbal) |
HD Video Frame Rate |
1920×1080p @ 30/25 fps (AHD / TVI) |
CVBS Scanning Frequency |
15.734 KHz (H) 59.94 Hz (V) / 15.625 KHz (H) 50 Hz (V) |
CVBS Resolution |
1000 TV Lines |
Total Pixels |
2000(H) x 1121(V) |
CMOS |
1/2.9" CMOS |
Scanning System |
Progressive |
Electronic Shutter |
1/60 ~ 1/50.000 sec / 1/60 ~ 1/50.000 sec |
S/N Ratio |
>50dB |
Sync System |
Internal |
Min. Illumination (Color) |
1.0 Lux |
Min. Illumination (B/W) |
0 Lux |
IR LED / Sensor |
11EA(850nm) Photo Sensor 2EA |
LED Lighting Distance |
Max 10m |

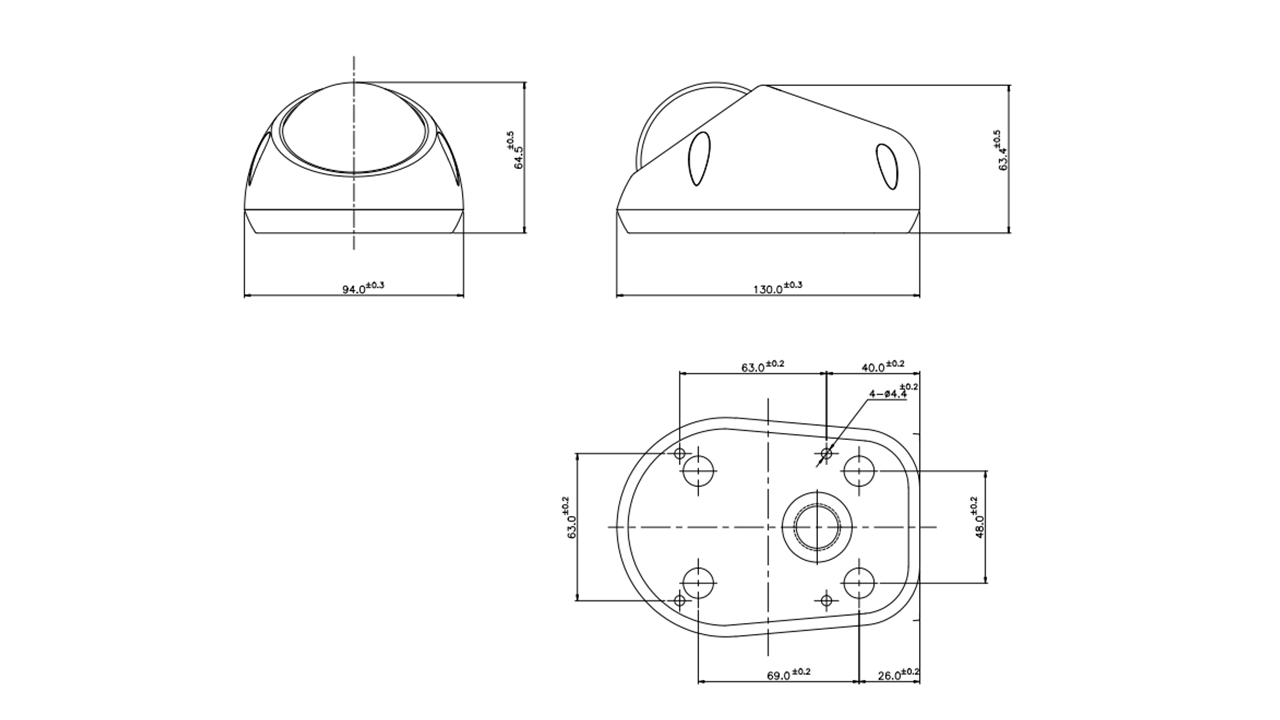

Dimensions (WxHxD) |
3.7"x2.5"x5.2" (94mm x 63mm x 130mm) |
Weight Unit / Shipping |
0.85 lbs (385g) / 1.23 lbs (555g) |
Operating Temperature |
14°F to 122°F (-10°C to 50°C) |
Outdoor Rating |
IP66 |
Power Source |
12V DC ± 10% |
Power Consumption |
3.6W / 0.30A |
Power Input |
5559 - 02P(Molex) or DC Jack |
Video Output |
1.0 Vp- p (75 ohm, composite), BNC (Yellow) Connector |
Audio Output |
BNC (White) Connector |
Auto Exposure |
On |
White Balance |
Auto (ATW) |
Day & Night |
Auto |
3D-DNR |
On |
Smart IR |
On |
AGC |
Auto |
