4MP Active Deterrence Bullet Camera | NDAA & TAA Compliant
Motorized focus Lens
Weather Proof
NDAA Compliant
TAA Compliant
| Video | |
| Image Sensor | 1/1.8” Progressive Scan CMOS |
| Max. Resolution | 4MP (2688×1520) |
| Scanning Mode | Progressive scan |
| Lens Type | Motorized focus |
| Focal Length | 4.5 to 8 mm |
| Aperture | F1.0 |
| Iris Control | P-Iris |
| Angular Field of View | 4.5 to 8 mm, H: 101°to 57.5°, V: 52.7°to 32° 8 to 32 mm, H: 39.7°to 16°, V: 22.6°to 9.2° |
| Min. Illumination | Color: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with warm-light ON |
| Dynamic Range | True WDR |
| Electronic Shutter Speed | Auto/Manual, 1/5 to 1/50,000s |
| Day and Night | Fixed filter |
| IR Distance (LEDs) | 40m / 131.2ft (4ea) |
| Image Setting | Image Adjustment: Brightness, Sharpness, Contrast, Saturation adjustable; Aisle Mode: Support; Mirror: Support; White Balance: Auto/Manual; Day/Night Setting; Auto, Day, Night, Time; Noise Reduction: 2D/3D DNR; Image Enhancment; HLC, BLC, Defog, True WDR; S/N Ratio 55db; Privacy masking: 4 areas |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Support |
| Image Stabilizer | - |
| De-fog | YES |
| Privacy Masking | 4 areas |
| Intelligent Video | Intelligent analysis: Smart Motion detection (Human and Vehicle) |
| Video Out | - |
| Pan/Tilt/Rotate | |
| Pan Range | Pan: 0˚ to 360˚ |
| Tilt Range | Tilt: 0˚ to 90˚ |
| Rotate Range | Rotation: 0˚ to 360˚ |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | - |
| Bitrate Control | CBR/VBR |
| Audio Compression | G.711, RAW_PCM |
| Two-way Audio | Yes |
| IP Camera Protocol | ONVIF (profile S/T/G/M) |
| Max. Frame Rate | Max. 4MP(2688×1520) @25/30fps resolution |
| Supported Resolution | 4MP(2688×1520) |
| Multi-video Streaming | 3 streams |
| Network Protocols | IPv4/IPv6, RTSP/RTCP/RTP, TCP/UDP, HTTPS, DHCP, DNS, DDNS, PPPoE, UPnP, ICMP, IGMP, FTP, NTP, SMTP, 802.1x, SNMP; |
| Security | IP address filter, encrypted HTTPS, Illegal login lock, IEEE 802.1x |
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Recording Session Buffer (NLTSrec) | - |
| Edge Storage | SD Card Slot Built-in, up to 512 GB |
| Alarm and Event | |
| Trigger Event | Motion detection, Smart Motion, Alarm input |
| Event Notification | Alarm record, Alarm output, FTP upload, SMTP upload, Audible alarm output, Red and blue light alarm |
| Audio Alarm | Yes |
| Audio In / Out | 1/1 Audio in/out (Built-in Mic / Speaker) |
| Alarm In / Out | 1ch Input, 1ch Output |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP66 |
| Operating Temperature | -40°C to 55°C (-40°F to 131°F ) |
| Operating Humidity | Less than 90% RH |
| Electrical | |
| Power Source | DC12V (-15% to +25%)/PoE (802.3af) |
| Power Consumption | Max. 11W |
| Approval | CE/FCC |
| Mechanical | |
| Dimensions | 303 × 100 × 107 mm (11.9 × 3.94 × 4.21 inch) |
| Weight | 1.25 Kg (2.76 lb) |
| Installation environment | Accessory configuration |
|
Wall |
Junction Box
Model: DA-JB150A
|
|
Ceiling |
Junction Box
Model: DA-JB150A
|
|
Pole |

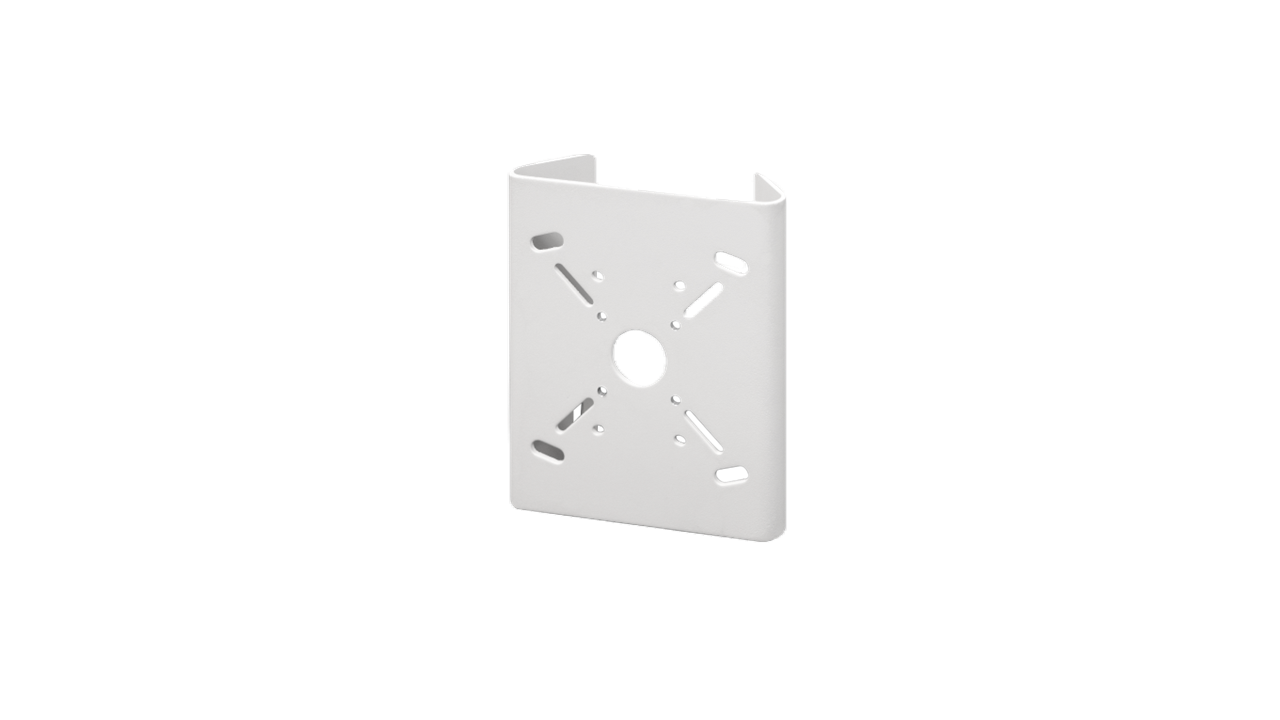

Pole Mount Adapter
Model: CHG2511
+
Junction Box
Model: DA-JB150A
|
