4MP Active Deterrence Turret Camera | NDAA & TAA Compliant
Fixed Lens
Weather Proof
ONVIF
NDAA Compliant
| Video | |
| Image Sensor | 1/1.8” CMOS |
| Max. Resolution | 4MP (2688×1520) |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed focal |
| Focal Length | 2.8 mm |
| Aperture | F1.0 |
| Iris Control | Fixed Iris |
| Angular Field of View | H: 112.4°, V: 61.2° |
| Min. Illumination | Color: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with warm-light ON |
| Dynamic Range | True WDR |
| Electronic Shutter Speed | Auto/Manual, 1/5 to 1/50,000s |
| Day and Night | Fixed filter |
| IR Distance (LEDs) | 25m / 82.02ft (4ea) |
| Image Setting | Image Adjustment: Brightness, Sharpness, Contrast, Saturation adjustable; Aisle Mode: Support; Mirror: Support; White Balance: Auto/Manual; Day/Night Setting; Auto, Day, Night, Time; Noise Reduction: 2D/3D DNR; Image Enhancment; HLC, BLC, Defog, WDR; Privacy masking: 4 areas |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Support |
| Image Stabilizer | - |
| De-fog | Yes |
| Privacy Masking | 4 areas |
| Intelligent Video | Intelligent analysis: Smart Motion detection (Human and Vehicle) |
| Video Out | - |
| Pan/Tilt/Rotate | |
| Pan Range | Pan: 0˚ to 355˚ |
| Tilt Range | Tilt: 0˚ to 80˚ |
| Rotate Range | Rotation: 0˚ to 360˚ |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | - |
| Bitrate Control | CBR/VBR |
| Audio Compression | G.711 A-law, G.711 μ-law, RAM PCM |
| Two-way Audio | Yes |
| IP Camera Protocol | IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast; ONVIF (Profile S/T/G/M), SDK, CGI |
| Max. Frame Rate | Max. 4MP(2688×1520) @25/30fps resolution |
| Supported Resolution | 4MP (2688×1520) |
| Multi-video Streaming | 3 Streams |
| Network Protocols | IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast |
| Security | IP address filter, encrypted HTTPS, Illegal login lock, IEEE 802.1x |
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Recording Session Buffer (NLTSrec) | - |
| Edge Storage | Built-in micro SD card slot (up to 1 TB) |
| Alarm and Event | |
| Trigger Event | Motion detection, Smart Motion, Alarm input |
| Event Notification | Alarm record, Alarm output, FTP upload, SMTP upload, Audible alarm output, Red and blue light alarm |
| Audio Alarm | Yes |
| Audio In / Out | 1/1 Audio in/out (Built-in Mic / Speaker) |
| Alarm In / Out | 1/1 alarm in/out |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP66 |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F ) |
| Operating Humidity | Less than 90% RH |
| Electrical | |
| Power Source | 12 VDC (-15% to +25%)/PoE (802.3af) |
| Power Consumption | Max. 9.5W |
| Approval | CE-EMC (EN 55032:2015+A1:2020, EN IEC 61000-6-3:2021, EN IEC 61000-3-2:2019+A12021, EN 61000-3- 3:2013+A2:2021, EN 55035:2017+A11:2020, EN 50130-4:2011+A1:2014) FCC (FCC 47 CFR 15, Subpart B, ANSI C63.4-2014) |
| Mechanical | |
| Dimensions | φ140 × 119.2 mm (5.51 × 4.69 inch) |
| Weight | 0.9 kg (1.98 lb) |

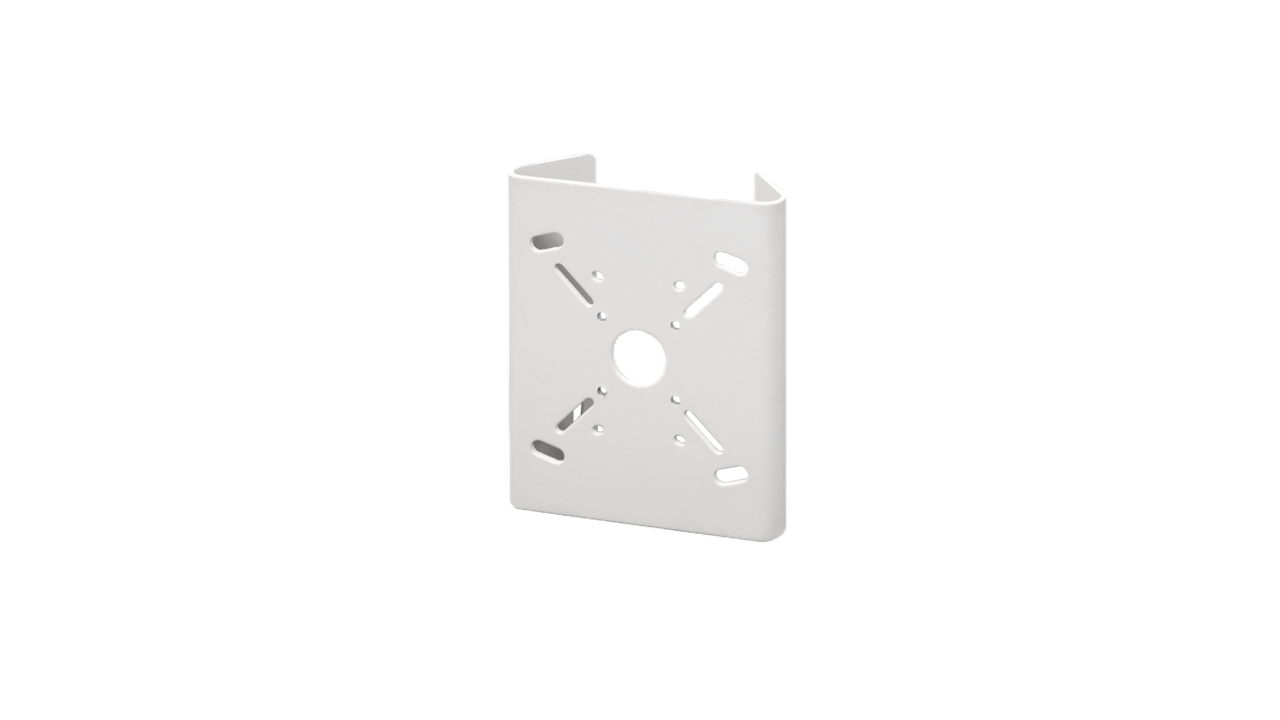

| Installation environment | Accessory configuration |
