IDIS GLOBAL

AV20576DN-28

Low-Profile, Multi-Sensor Versatility_20MP | NDAA & TAA Compliant

  • 20MP Resolution
  • Fixed Lenses 2.8mm(x4)
  • Day and night (ICR)
  • True wide dynamic range (WDR)
  • IK10 / IP66
  • PoE (IEEE 802.3af Class 3)
  • Two-way audio
  • Alarm in / out
  • Supports ONVIF
  • Easy 3-axis camera adjustment
  • NDAA Compliant
    5MP
    IR Cut Filter Removable
    True WDR
    ONVIF
    IP66
    PoE
    Two-way audio
    NDAA Compliant
    TAA Compliant
Camera Imaging Specifications
Image Sensor (CMOS) 20MP (5MP x 4) CMOS Progressive Sensor
Optical Format 1/2.8"
Pixel Pitch 2.0μm
Minimum Illumination (Color (Day Mode)) 0.15 Lux
(B/W (Night Mode)) 0.15 Lux
Full FOV Resolution (Total) 10368 H x 1944 V
(Per Sensor) 2592 H x 1944 V
Dynamic Range Up to 100dB
Frame Rates (At Max Resolution) 15fps (20MP)
(Multi-Stream) Up to 15fps (20MP) + 10fps (20MP) + 15fps (1.2MP)
Lens (x4) 2.8mm, 1/2.7", F1.6, H-FOV = 98°
Programmability
Optics M12 lens and remote focus module
Low-Light Performance NightView technology
Programmable Shutter Speed Auto/manual 0.1ms ~ 500ms
Motion Detection Real-time, 1024 detection zones
Privacy Masking Unlimited
Backlight Compensation Auto
White Balance Mode Auto/manual
Gain Control Auto
Flicker Control 5Hz–255Hz adjustable
Scaling (8MP) 1920x1080, 1280x720, 960x540, 640x360
(20MP) 2592x1944, 2560x1440, 2304x1296, 2048x1536, 1920x1080, 1600x1200, 1296x972, 1280x960, 1280x720, 800x600, 640x480
Wide Dynamic Range Adjustment between WDR and LDR modes
Efficiency SNAPstream+ (Smart Noise Adaptation and Processing)
Bit rate and bandwidth limitation control
Miscellaneous Programmable brightness, contrast, sharpness, saturation, hue
Password 16-digit ASCII character password
On-Screen Display (OSD) Time/date/camera name/custom text
Data Transmission
Compression Type H.265/H.264 (MPEG-4, Part 10)/Motion JPEG
21 levels of quality
Bit Rate Control 128K–8000K
Smart Codec Smart GOP
Network Protocols SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, UPnP, UDP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, QoS, DDNS, Zero Configure
Network Interface 10/100/1000Mbps Ethernet, RJ45
Max Camera Bandwidth 36Mbps (9Mbps per sensor)
Multi-Streaming 2 x H.265/H.264 stream, 1 x M-JPEG stream (per sensor)
Users Live Viewing/Administrator for up to 10 clients
Event Management
Event Trigger Motion detection, tampering detection, alarm in
Notifications Send a message via e-mail/FTP/NAS, SD Card Recording, Record JPG/MP4
Compliance
Industry Standard ONVIF Profile S, G, and T conformant
Listings UL60950-1, E489591
FCC Compliance 47 CFR 15 Class A
Environmental RoHS, REACH, WEEE
Markings (CE): EN55032 Class A, EN55035, EN61000-3-2, EN61000-3-3
Mechanical IK-10 (EN62262), IP66 (EN60529)
Environmental
Operating Temperature -40°C (-40°F) to +50°C (122°F)
Humidity 0% to 90% (non-condensing)
Storage Temperature -40°C (-40°F) to +60°C (140°F)
Electrical
Alarm Input/Output 1 input (wet contact)/1 output (wet contact)
Power Over Ethernet IEEE 802.3at (PoE+), Class 4
Auxiliary Power 12-48V DC, 24V AC
Power Consumption 14W max
Audio Electrical
Streaming Two-way
Compression G.711 PCM 8 kHz/8 bit
Input/Output Line in/ Line output
Mechanical
Casing Die-cast aluminum chassis with polycarbonate dome bubble
IP66 weather proof standard
Impact resistant, IK-10 rated
Gimbal Easily adjustable, 3-axis w/360° pan, 90° tilt, and 360° z-axis
Dimensions (Unit) Ø 7.7" (196mm) x 3.1" H (78.5mm)
(Bubble Only) Ø 6.7" (169.2mm) x 1.3" H (33.4mm)
(Packaged) 8" W (203mm) x 8" L (203mm) x 4" H (102mm)
Weight (Unit) 3.8lbs (1.7kg)
(Packaged) 4.4lbs (2.0kg)
On Board Storage MicroSDXC slot up to 1TB (card not included)
Body Color AV Costar White (Pantone® Cool Gray 1C)
Installation environment Accessory configuration

Wall

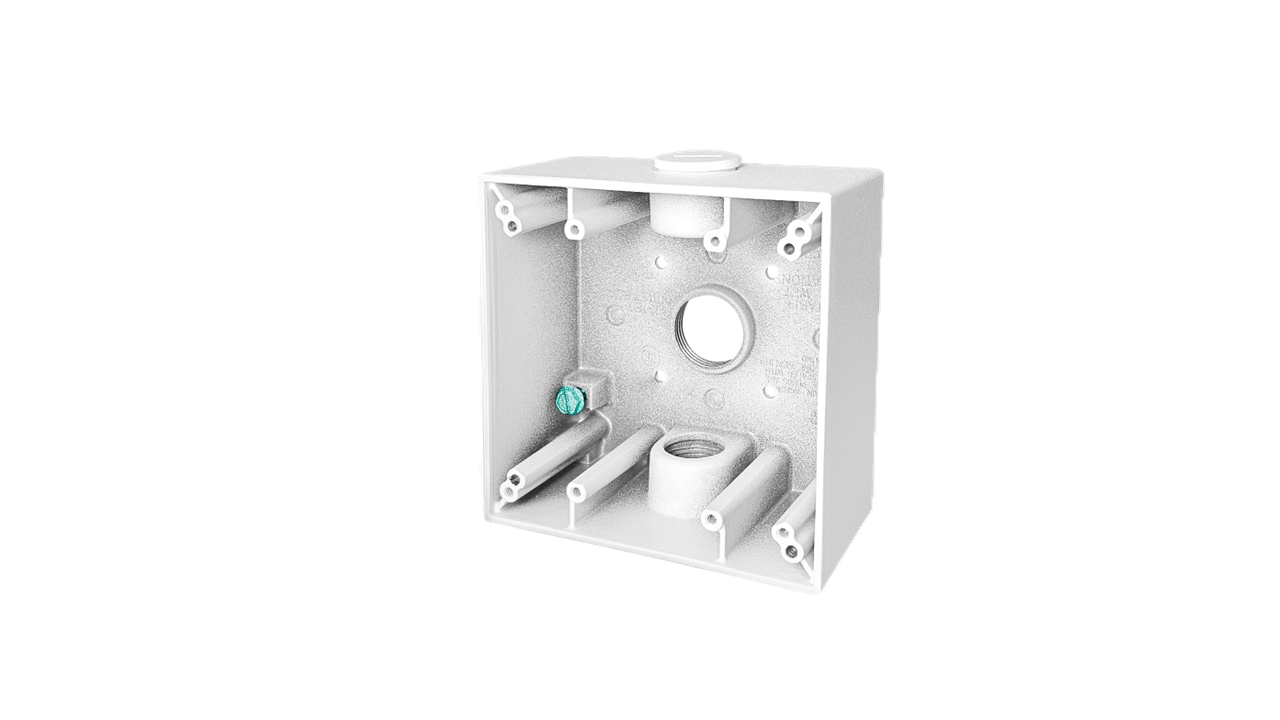

Junction Box
Model: AV-JBA-W

or

WALL MOUNT
Model: DA-WM2050

+

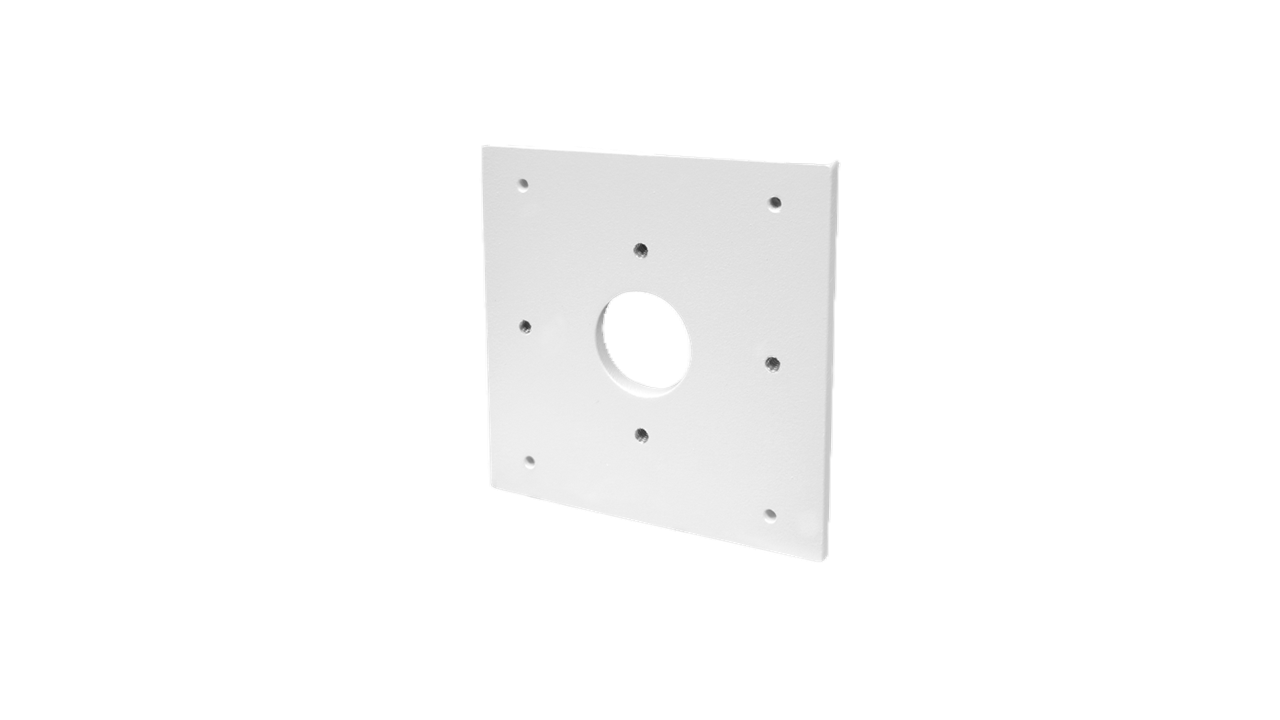

Mount Ring Adapter
Model: DA-MA110A

+

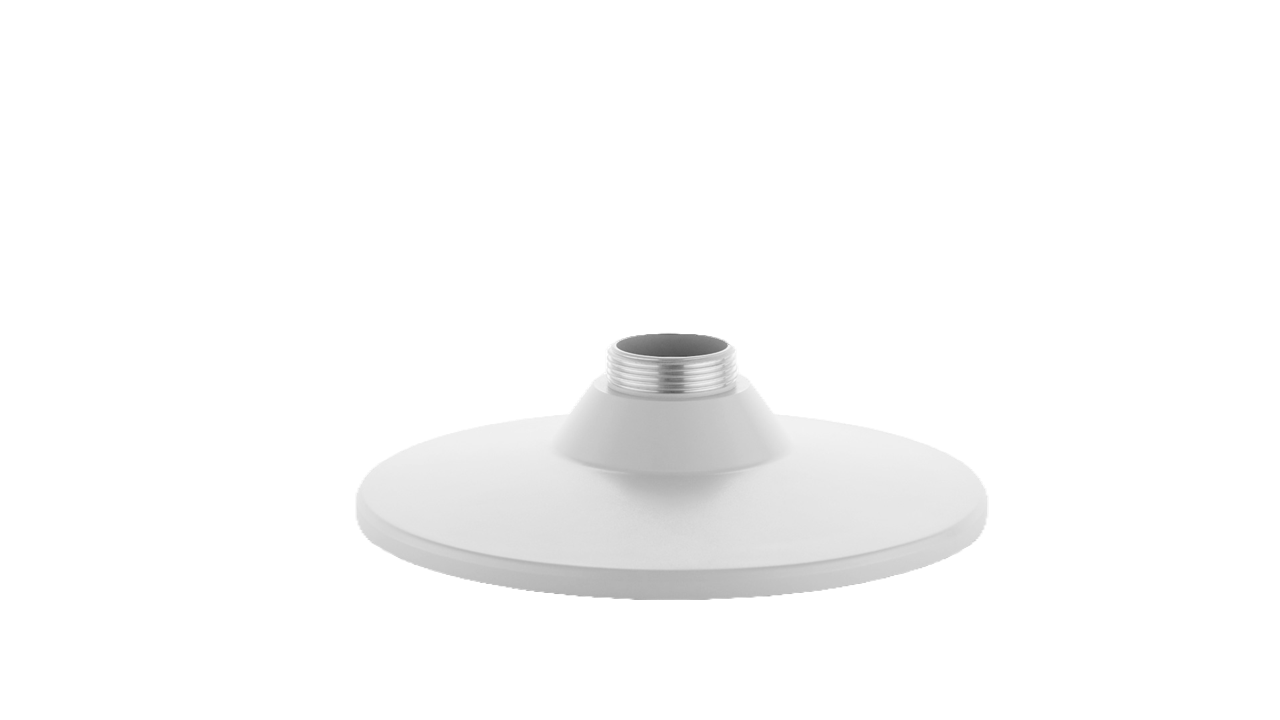

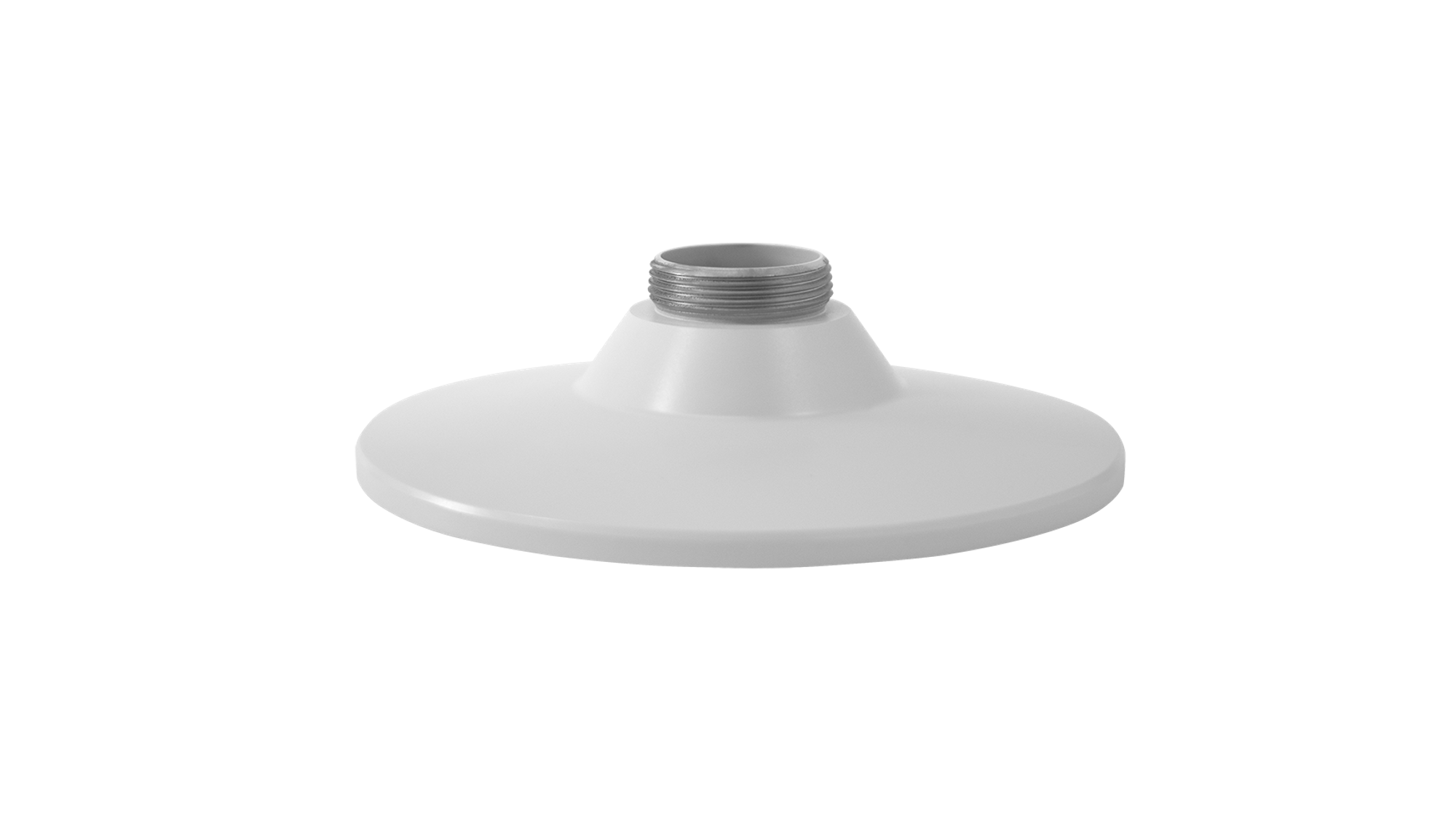

CAP
Model: SO3-CAP-W

or

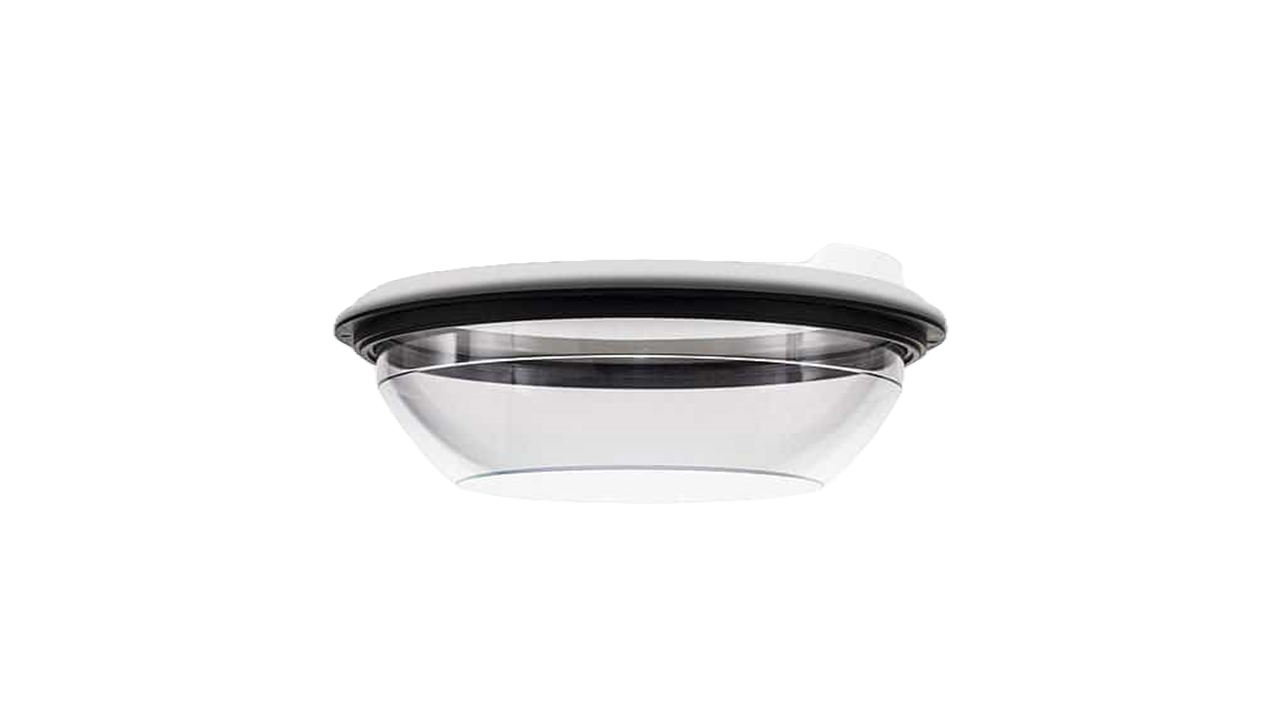

Bubble With Gasket
Model: SO-BUBBLE

Celling

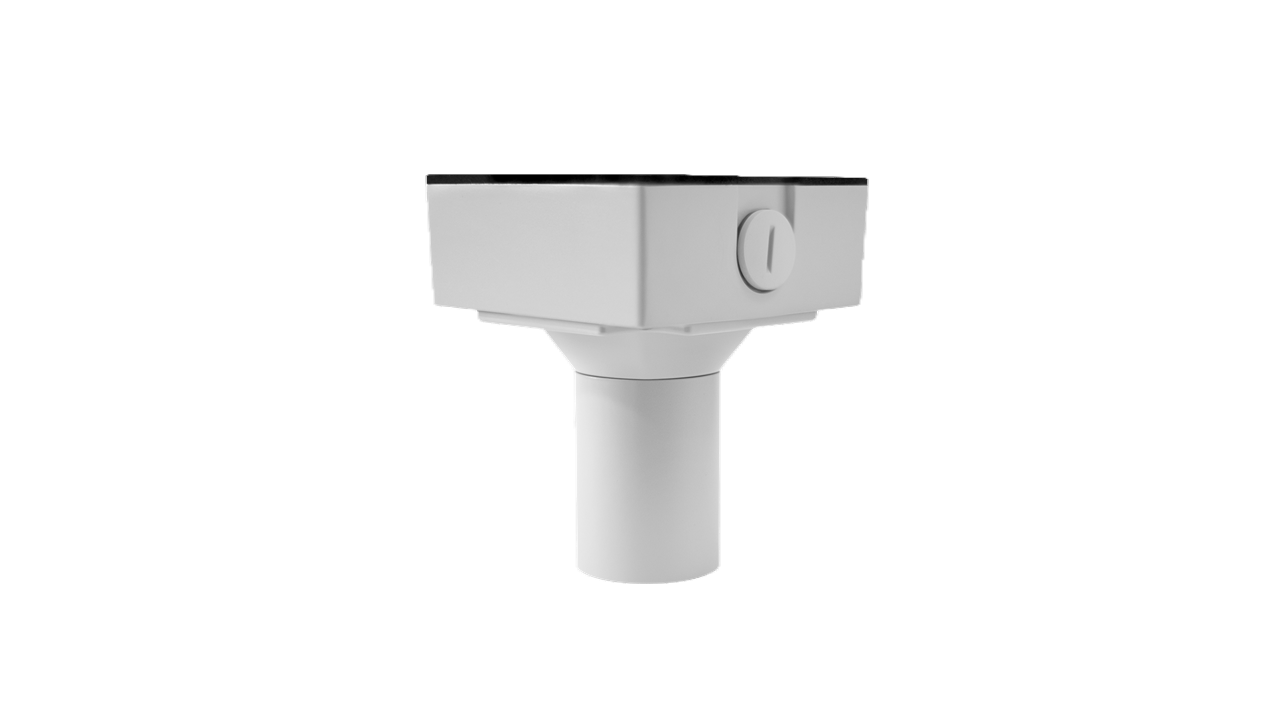

Pendant Mount Bracket
Model: AV-PMJB-W

+

CAP
Model: SO3-CAP-W

Pole

WALL MOUNT
Model: DA-WM2050

+

Pole Mount Adapter
Model: CHG2511

+

Mount Ring Adapter
Model: DA-MA110A

+

CAP
Model: SO3-CAP-W

Corner

WALL MOUNT
Model: DA-WM2050

+

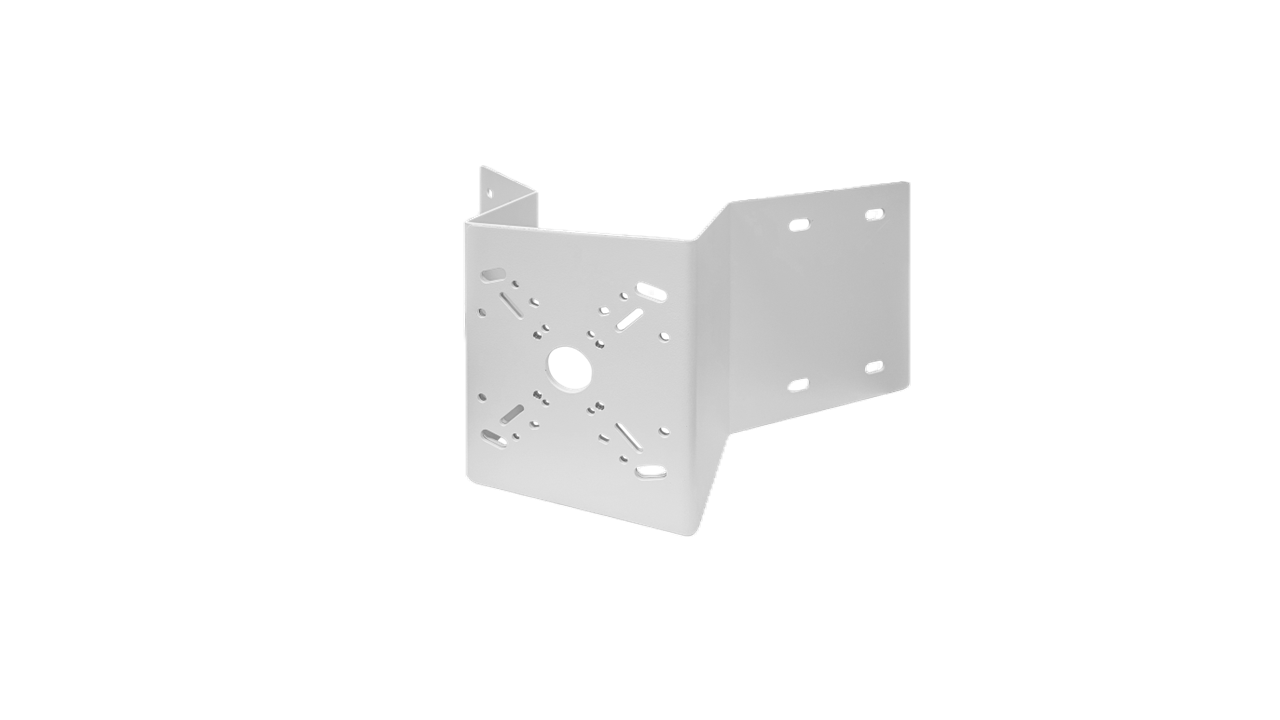

Corner Mount Adapter
Model: CHG2501

+

Mount Ring Adapter
Model: DA-MA110A

+

CAP
Model: SO3-CAP-W

ETC

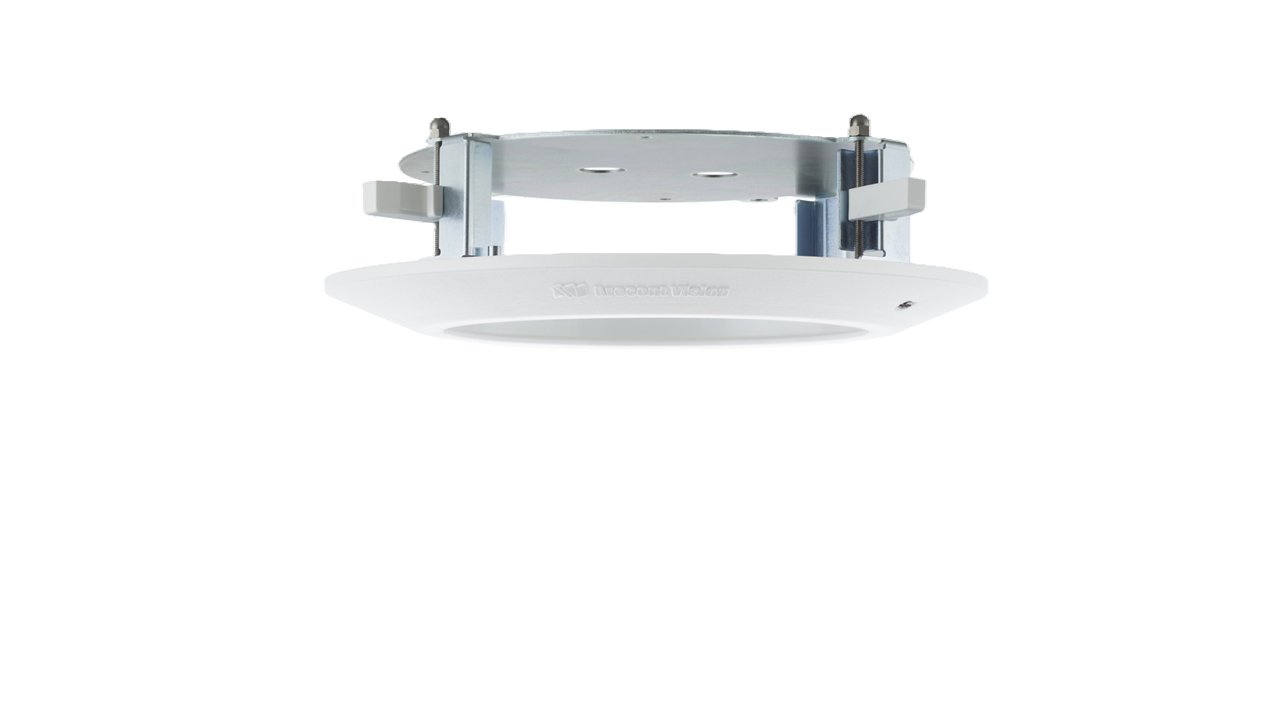

Flush Mount Adapter
Model: SO3-FMA

or

Mount Ring Adapter
Model: DA-MA110A

or

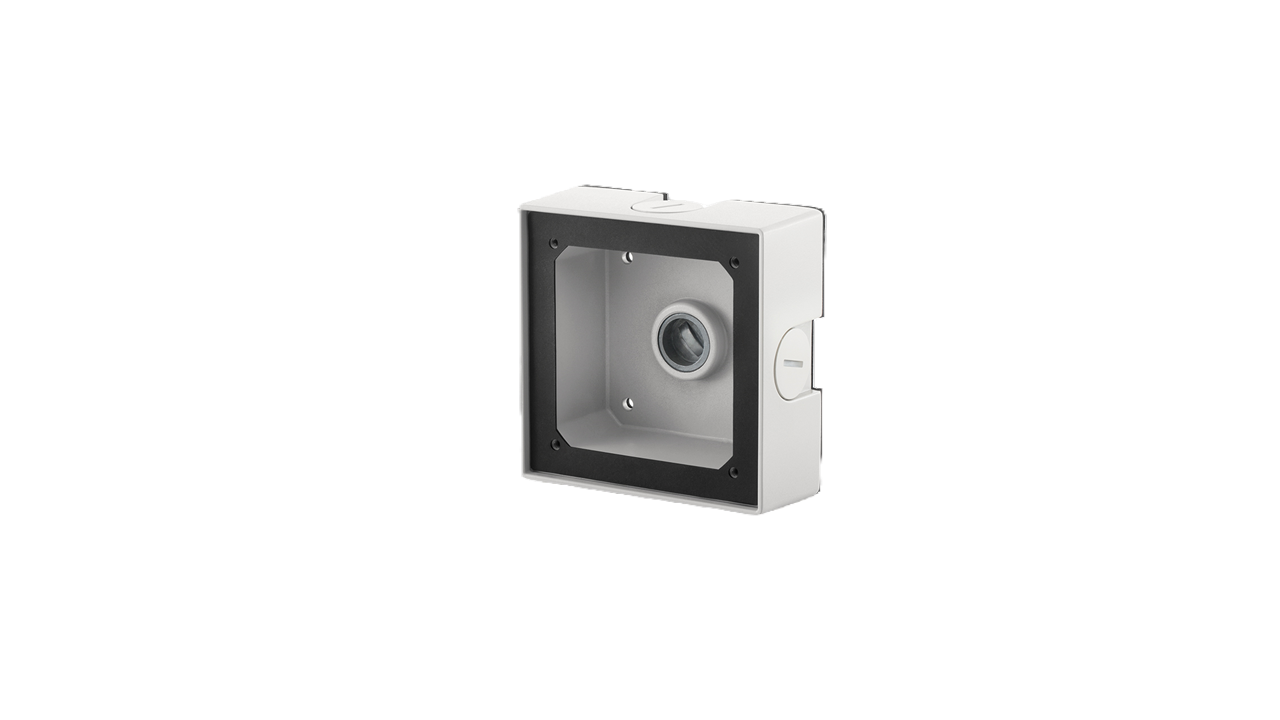

Wall Mount Junction Box with Cover
Model: DA-JB130A

or

Junction Box Cover with gasket
Model: DA-JB131A

or

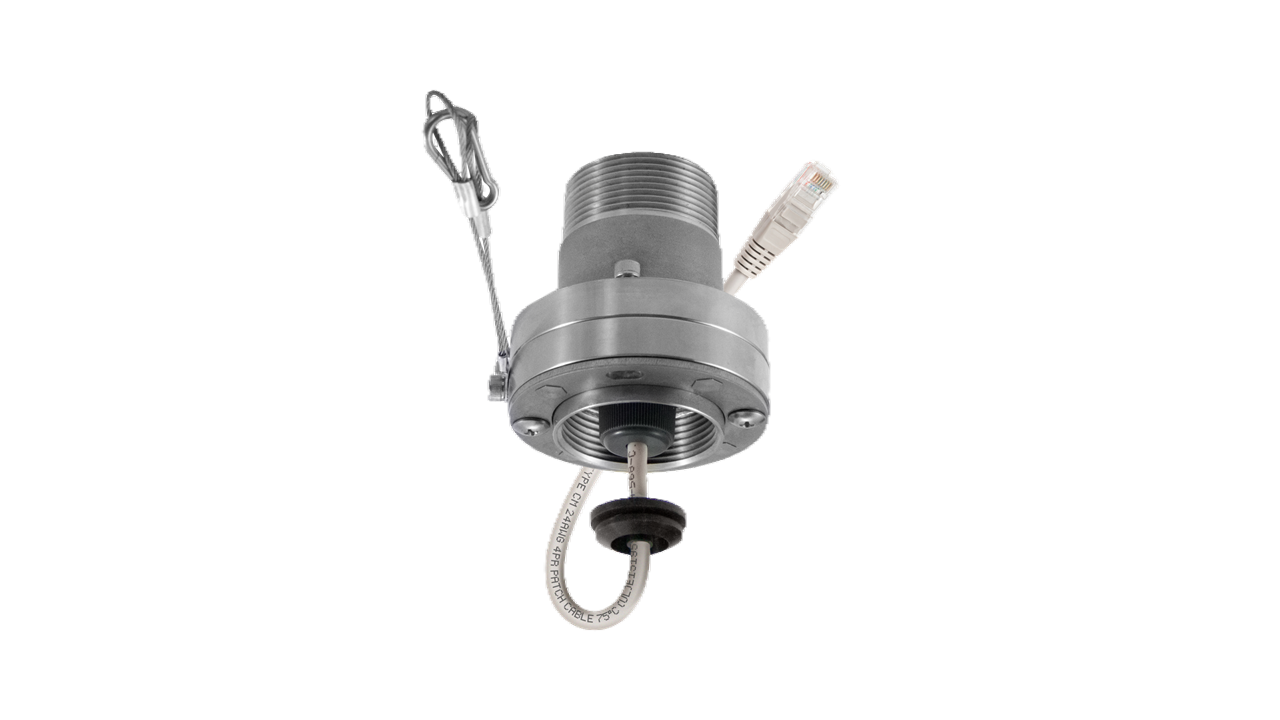

Quick Disconnect
Model: 8188365002

or

Quick Disconnect
Model: 8188365002-RJ45-IP67
