Four 5MP Sensors with Remote Setup & 1.5 NPT Quick Disconnect | NDAA & TAA Compliant
5MP
IR Cut Filter Removable
True WDR
ONVIF
IP66
PoE
Two-way audio
IR LED
NDAA Compliant
TAA Compliant| Camera Imaging Specifications | |
| Image Sensor (CMOS) | 20MP (5MP x 4) CMOS Progressive Sensor |
| Optical Format | 1/2.8" |
| Pixel Pitch | 2.0μm |
| Minimum Illumination | (Color (Day Mode)) 0.15 Lux (B/W (Night Mode)) 0.15 Lux |
| Full FOV Resolution | (Total) 10368 H x 1944 V (Per Sensor) 2592 H x 1944 V |
| IR Illumination | No |
| Dynamic Range | DOL WDR 120db |
| Frame Rates | (At Max Resolution) 30fps (20MP) (Multi-Stream) Up to 30fps (20MP) + 30fps (20MP) + 30fps (1.2MP) Enhanced WDR on |
| Lens (x4) | 3.3–6.6mm, F1.8, H-FOV = 42°–96° |
| Programmability | |
| Optics | Remote focus / zoom |
| Low-Light Performance | NightView™ technology |
| Programmable Shutter Speed | Auto/manual 0.1ms ~ 500ms |
| Motion Detection | Real-time, 1024 detection zones |
| Privacy Masking | Unlimited |
| Backlight Compensation | Auto |
| White Balance Mode | Auto/manual |
| Gain Control | Auto |
| Flicker Control | 5Hz–255Hz adjustable |
| Image Rotation | 180° |
| Scaling | (20MP) 2592x1944, 2560x1440, 2304x1296, 2048x1536, 1920x1080, 1600x1200, 1296x972, 1280x960, 1280x720, 800x600, 640x480 (32MP) 3840x2160, 2592x1944, 2560x1440, 2304x1296, 2048x1536, 1920x1080, 1600x1200, 1296x972, 1280x960, 1280x720, 800x600, 640x480, 640x360 |
| Wide Dynamic Range | Adjustment between WDR and LDR modes |
| Efficiency | SNAPstream+ (Smart Noise Adaptation and Processing) Bit rate and bandwidth limitation control |
| Miscellaneous | Programmable brightness, contrast, sharpness, saturation, hue |
| Password | 16-digit ASCII character password |
| On-Screen Display (OSD) | Time/date/camera name/custom text |
| Standard Video Analytics | Motion Detection Camera Tamper Intrusion Detection Line Crossing Loitering |
| Optional Advanced Video Analytics | Object Classification (Person/Vehicle) Object Left/Removed People/Vehicle Counting |
| Included Accessories | (RS) Power Cable, Alarm Cable (RSIR) Cap, Power Cable, Alarm Cable, 2x Audio Cables (In/Out) |
| Data Transmission | |
| Compression Type | H.265/H.264 (MPEG-4, Part 10)/Motion JPEG 21 levels of quality |
| Bit Rate Control | 128K–8000K |
| Smart Codec | Smart GOP |
| Network Protocols | SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, UPnP, UDP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, Zero Configure |
| Network Interface | 10/100/1000Mbps Ethernet, RJ45 |
| Max Camera Bandwidth | 40Mbps (10Mbps per sensor) |
| Multi-Streaming | 2 x H.265/H.264 stream, 1 x M-JPEG stream (per sensor) |
| Users | Live Viewing/Administrator for up to 10 clients |
| Compliance | |
| Industry Standard | ONVIF Profile S, G, M, and T conformant |
| Listings | UL62368-1 & CAN/CSA-C22.2 No.62368-1, E489591 |
| FCC Compliance | 47 CFR 15 Class A |
| Environmental | RoHS, REACH, WEEE |
| Markings | (CE): EN55032 Class A, EN55035, EN61000-3-2, EN61000-3-3, EN60950, IEC 62471 |
| Mechanical | IK-10 (EN62262), IP66 (EN60529) |
| Event Management | |
| Event Trigger | Motion detection, tampering detection, alarm in |
| Notifications | Send/record message via e-mail/FTP/NAS, record JPG/mp4 |
| Electrical | |
| Alarm Input/Output | 1 input (wet contact)/1 output (wet contact) |
| Power Over Ethernet | (RS) IEEE 802.3at (PoE+), Class 4 (RSIR) IEEE 802.3bt (PoE++), Class 5 |
| Auxiliary Power | (RS) 24-48V DC, 24V AC (RSIR) 24V DC, 24V AC |
| Power Consumption | (RS) 25.5W max (RSIR) 40W max |
| Audio Electrical | |
| Streaming | Two-way |
| Compression | G.711 PCM 8 kHz/8 bit |
| Input/Output | Line in (requires amplification) / Line output |
| IR Illuminator (RSIR Models Only) | |
| LEDs | 6 pcs 850nm LEDs |
| Projection Distance | 98.4ft (30m) IR distance (max) / 360° IR angle |
| Environmental | |
| Operating Temperature | -40°C (-40°F) to +50°C (122°F) |
| Humidity | 0% to 90% (non-condensing) |
| Storage Temperature | -40°C (-40°F) to +60°C (140°F) |
| Mechanical | |
| Casing | Die-cast aluminum chassis with polycarbonate dome bubble IP66 weather proof standard Impact resistant, IK-10 rated |
| Gimbal | (RS) Remotely adjustable, 3-axis w/360° pan, 135° tilt (RSIR) Remotely adjustable, 3-axis w/360° pan, 90° tilt |
| Dimensions | (RS) (Unit) Ø 8.8" (223.4mm) x 4.9" H (125.4mm) (RS) (Bubble Only) Ø 7.2" (183.3mm) x 2.3" H (59.3mm) (RS) (Packaged) 11.1" W (281mm) x 11.1" L (281mm) x 7.4" H (188mm) (RSIR) (Unit) Ø 9.72" (247mm) x 7.95" H (202mm) (RSIR) (Bubble Only) Ø 8.44" (214.31mm) x 3" H (76.3mm) (RSIR) (Packaged) 28.54" W (725mm) x 14.57" L (370mm) x 12.99" H (330mm) |
| Weight | (RS) (Unit) 5.2lbs (2.36kg) (RS) (Packaged) 5.9lbs (2.68kg) (RSIR) (Unit) 7.55lbs (3.43kg) (RSIR) (Packaged) 10.09lbs (4.58kg) |
| On Board Storage | (RS) MicroSDXC slot up to 1TB (card not included) (RSIR) 2 x MicroSDXC slot up to 1TB (card not included) |
| Body Color | Arecont Vision® White (Pantone® Cool Gray 1C) |
| Installation environment | Accessory configuration |
|
Wall |

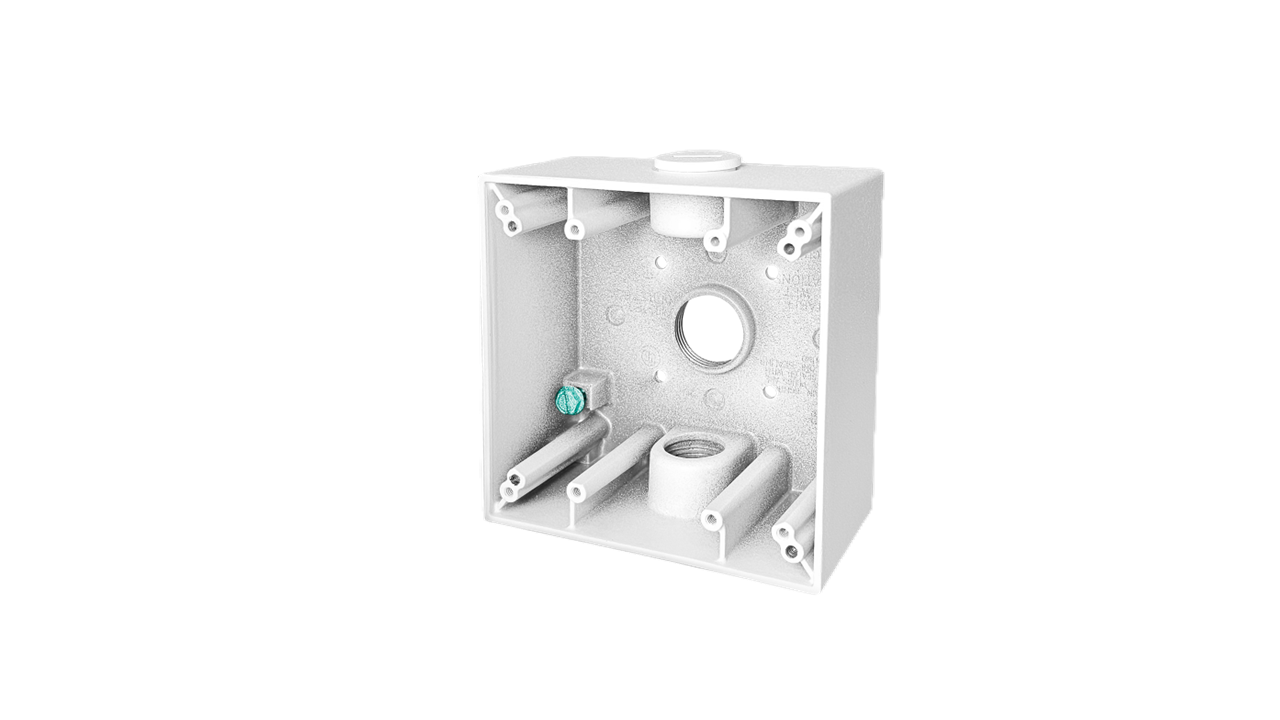

Junction Box
Model: AV-JBA-W
or
WALL MOUNT
Model: DA-WM2050
+

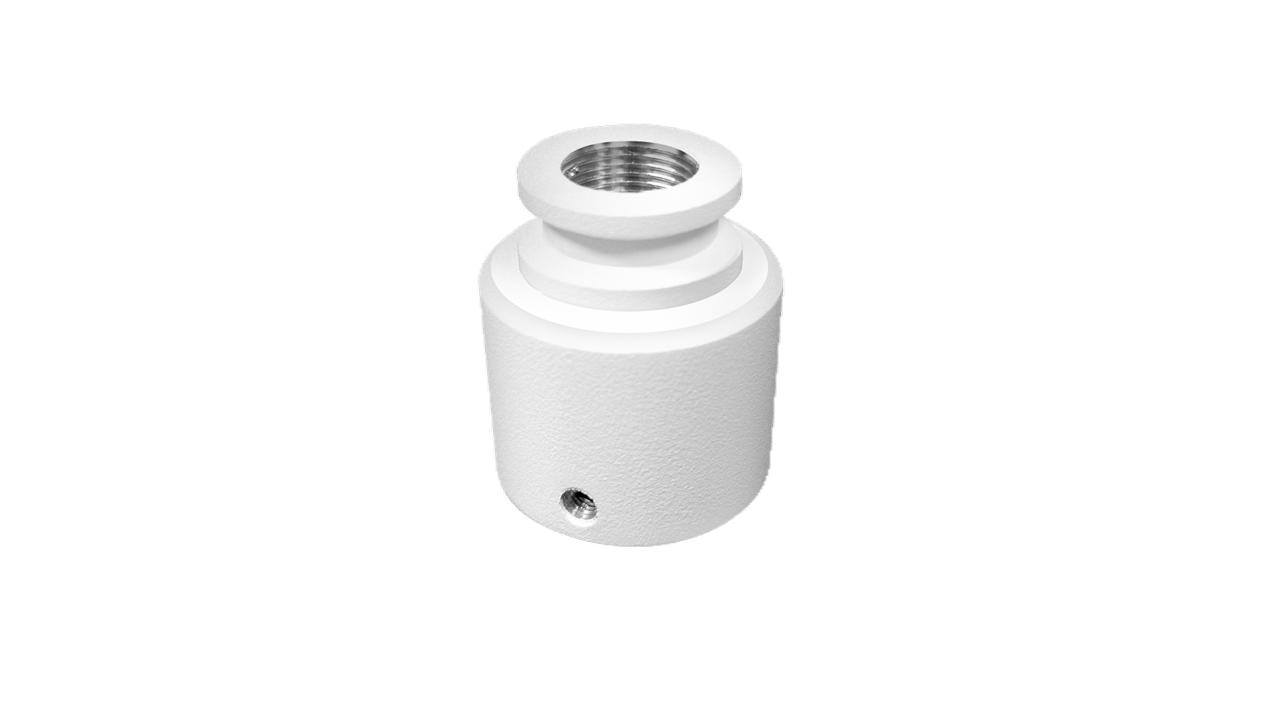

Mount Ring Adapter
Model: DA-MA110A
|
|
Ceiling |

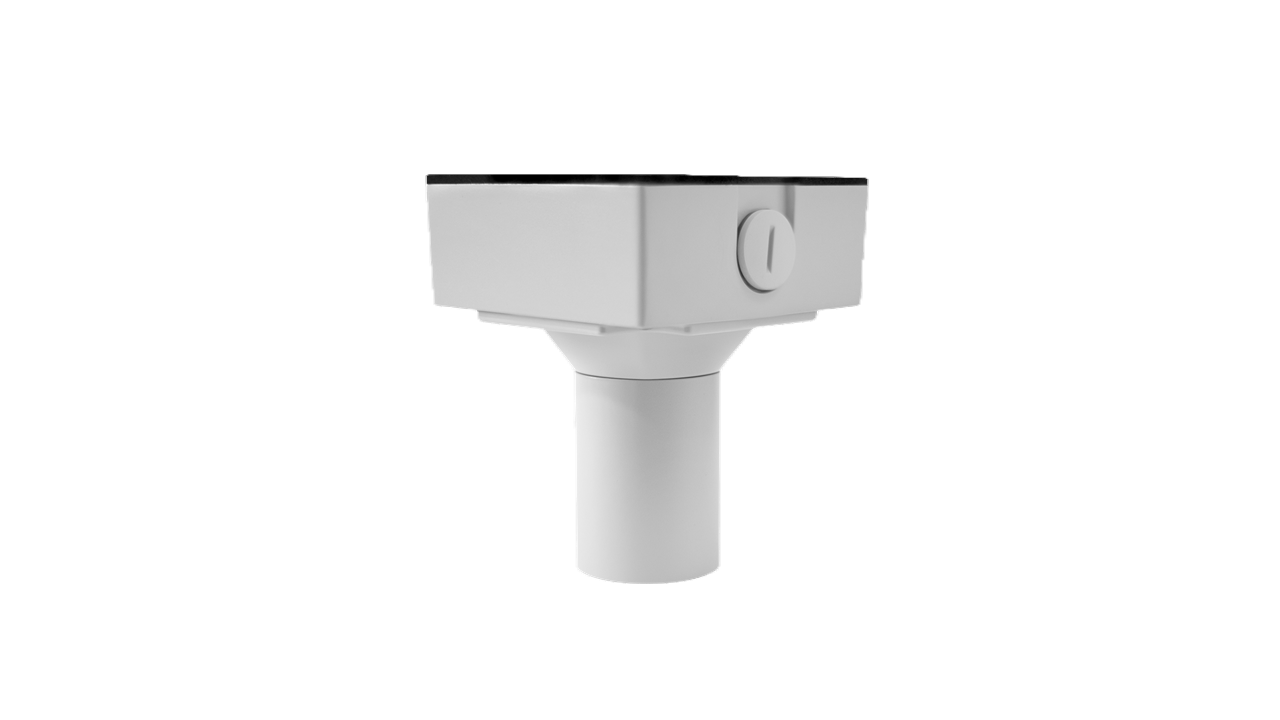

Pendant Mount Bracket
Model: AV-PMJB-W
|
|
Pole |
WALL MOUNT
Model: DA-WM2050
+

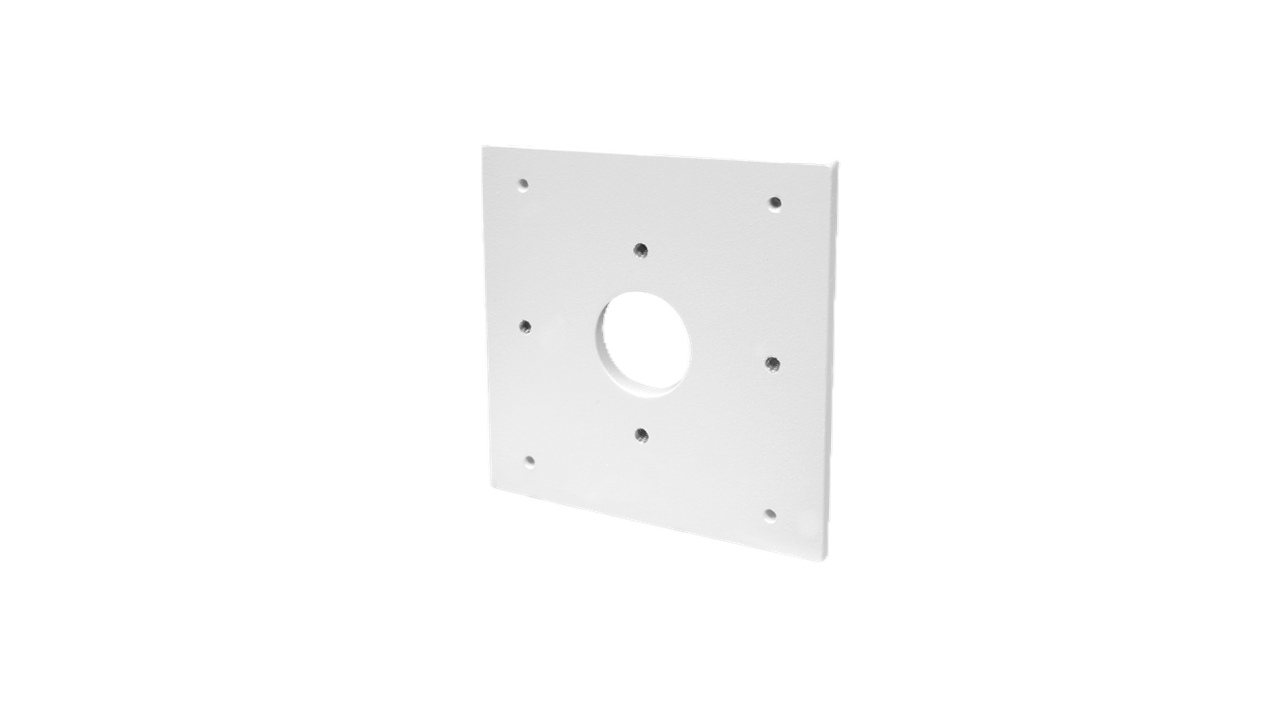

Pole Mount Adapter
Model: CHG2511
+
Mount Ring Adapter
Model: DA-MA110A
|
|
Corner |
WALL MOUNT
Model: DA-WM2050
+

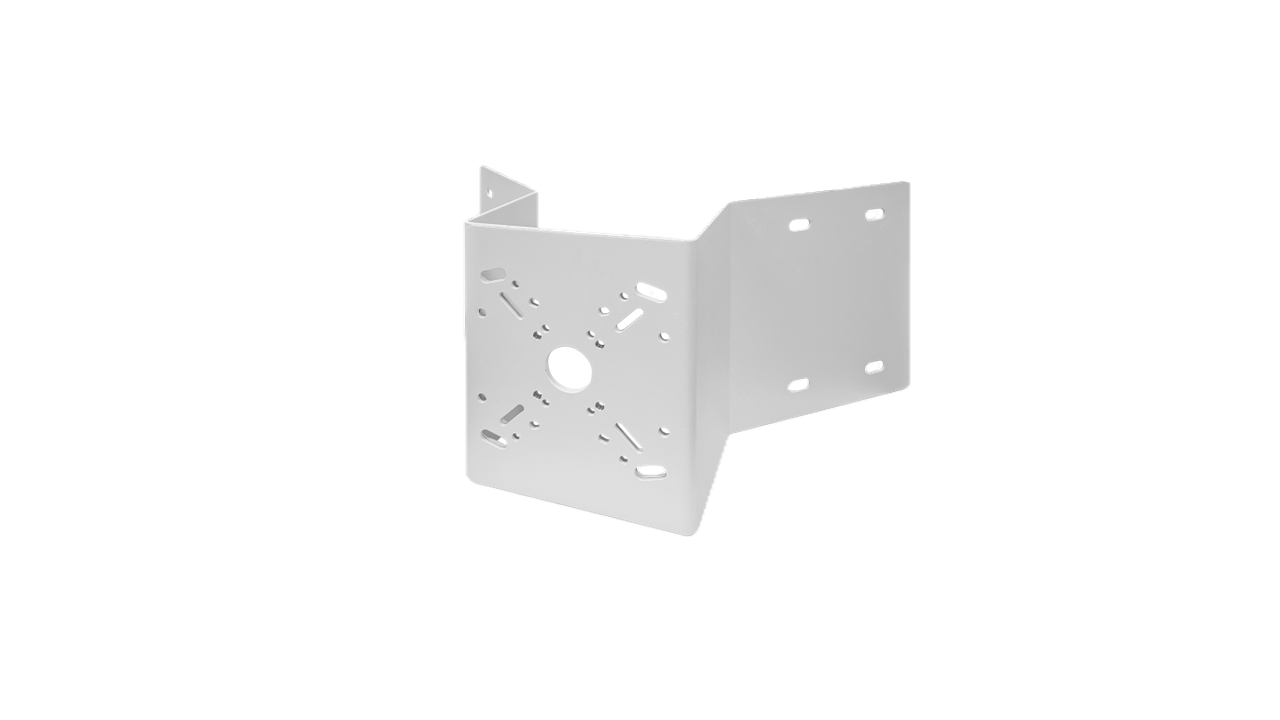

Corner Mount Adapter
Model: CHG2501
+
Mount Ring Adapter
Model: DA-MA110A
|
|
ETC |
Mount Ring Adapter
Model: DA-MA110A
or

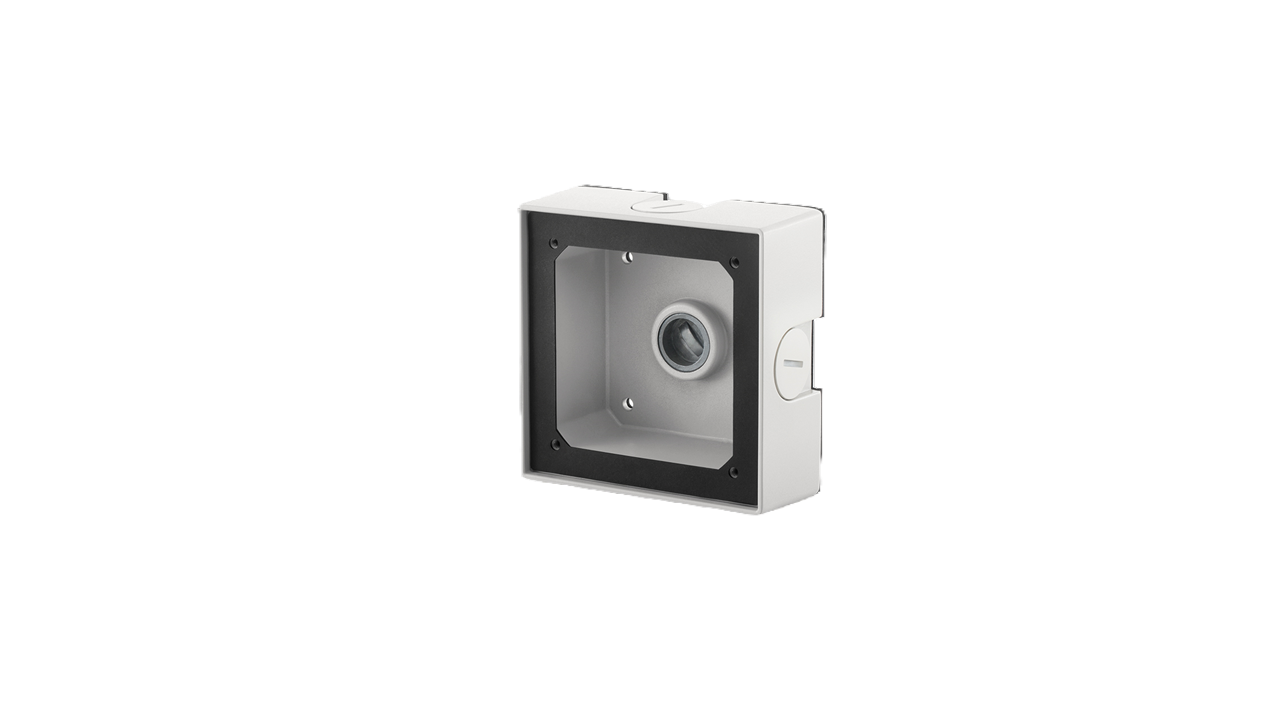

Wall Mount Junction Box with Cover
Model: DA-JB130A
or
Junction Box Cover with gasket
Model: DA-JB131A
|
