12MP Fish Eye | NDAA & TAA Compliant
12MP
IR Cut Filter Removable
ONVIF
IP67
PoE
Two-way audio
NDAA Compliant
TAA Compliant| Camera Imaging Specifications | |
| Image Sensor (CMOS) | 12MP CMOS Progressive Sensor |
| Optical Format | 1/1.7" |
| Minimum Illumination | (Color (Day Mode)) 0.3 Lux (B/W (Night Mode)) 0.09 Lux, IR sensitive |
| Full FOV Resolution | 4000 H x 3000 V 12MP (2992 H x 2992 V 9MP effective) |
| Scaling | Yes |
| IR Illumination | Yes |
| Dynamic Range | 100dB Digital WDR |
| Frame Rates | (Single Stream) Up to 30fps Max Resolution All Stream 1 Dewarp Modes H.265/H.264 (Dual Streams) Up to 15fps Max Resolution All Stream 1 Dewarp Modes H.265/H.264 + 15fps Max Resolution All Stream 2 Dewarp Modes H.265/H.264 |
| Lens | (Fisheye Lens) 1.97mm, F2.3, H-FOV 180°, V-FOV 180° |
| Programmability | |
| Optics | Fisheye Lens |
| Low-Light Performance | NightView technologyIR Illuminators |
| Programmable Shutter Speed | Auto/Manual, shutter time: 1 ~ 1/100000s |
| Motion Detection | Up to 5 Areas |
| Privacy Masking | Up to 5 Areas |
| Backlight Compensation | Auto |
| White Balance Mode | Auto/manual |
| Gain Control | Auto |
| Image Rotation | Horizontal and Vertical Mirror (Independent or Combined) |
| Scaling | (Stream 1) (Ceiling Perspective) Fisheye Overview: 2992x2992, 2048x2048, 1280x1280 PTZ: 2048x2048, 2048x1536, 1920x1080 Quad View: 3584x2688, 3584x2016, 2048x2048, 2048x1536, 1920x1080 Panorama: 4096x1024, 3584x1008, 2560x720 Double Panorama: 3584x2688, 3584x2016, 2560x1920, 2560x1440 Panorama PTZ: 3584x1344, 2560x960, 1920x720 Double Panorama PTZ: 3584x2688, 2560x1920, 1920x1440 (Wall Perspective) Fisheye Overview: 2992x2992, 2048x2048, 1280x1280 PTZ: 2048x2048, 2048x1536, 1920x1080 Panorama: 3584x1344, 3584x1008, 2560x960, 2560x720, 1920x1080 Double Panorama: 3584x2688, 3584x2016, 2560x1920, 2560x1440 (Stream 2) (Ceiling Perspective) Fisheye Overview: 2992x2992, 2048x2048, 1280x1280, 960x960 PTZ: 2048x2048, 1920x1080, 1280x1280, 960x960 Quad View: 2560x1920, 2560x1440, 2048x2048, 2048x1536, 1920x1080, 960x960 Panorama: 2560x720, 2048x512 Double Panorama: 2560x1920, 2560x1440 Panorama PTZ: 2304x864, 1920x720, 1280x480 Double Panorama PTZ: 2048x1536, 1024x768 (Wall Perspective) Fisheye Overview: 2992x2992, 2048x2048, 1280x1280, 960x960 PTZ: 2048x2048, 1920x1080, 1280x1280, 960x960 Panorama: 2560x960, 2560x720, 1920x1080, 960x540 Double Panorama: 2560x1920, 2560x1440 |
| Wide Dynamic Range | 100dB Digita |
| Miscellaneous | Color saturation, brightness, sharpness, contrast, white balance, day/night threshold, exposure control (including automatic gain control), hue, GOP length |
| On-Screen Display (OSD) | Time / Date / Camera Name / Custom Text |
| Display/Dewarp Modes | Fisheye Overview, PTZ, Quad View, Panorama, Double Panorama, Panorama PTZ, Double Panorama PTZ |
| Data Transmission | |
| Compression Type | H.265/H.264 (MPEG-4, Part 10)/Motion JPEG |
| Bit Rate Control | (Stream 1): Variable 500-12000 Kbps; Max 500-11000 Kbps; Constant 500-11000 Kbps (Stream 2): Variable 500-8000 Kbps; Max 500-7000 Kbps; Constant 500-7000 Kbps |
| Transmission Protocols | TCP/IP, UDP, ICMP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS, SSH, SSL, SMTP, FTP, RTSP, UPnP, DHCP, DNS, NTP, RTP, RTCP, DynDNS support, 802.1x 10/100Base-TX Auto-adaptive Ethernet network interface, RJ45 |
| Network Protocols | SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, UPnP, UDP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, QoS, DDNS, Zero Configure |
| Multi-Streaming | 2 x H.265/H.264 stream, 1 x M-JPEG stream |
| Users | Live viewing/Administrator for up to 31 clients |
| Event Management | |
| Event Trigger | Motion Detection, Alarm Handler, Tampering Alarm, Network Failure |
| Notifications | Trigger Alarm Output, E-mail, SMTP, FTP, Record Video to SD Card and Network Storage |
| Compliance | |
| Industry Standard | ONVIF Profile S, G, T conformant |
| Listings | UL 62368-1, E489591 |
| FCC Compliance | 47 CFR FCC Part 15B Class A |
| Environmental | RoHS, WEEE |
| Markings | (CE): EN55032, EN55035,EN61000-3-2,EN61000-3-3 Class A |
| Mechanical | IK-10 (IEC62262), IP67 (IEC60529) |
| Environmental | |
| Operating Temperature | -40°C (-40°F) to 55°C (131°F) |
| Humidity | 0% to 90% (non-condensing) |
| General Electrical | |
| Alarm Input/Output | 1 x input (wet contact)/1 x output (wet contact) |
| Power Over Ethernet | PoE IEEE 802.3at, Class 4 Total PoE solution (no external power requirement) |
| Auxiliary Power | 12VDC |
| Power Consumption | 15W max |
| IR Illuminator | |
| LEDs | 6pcs, independently configurable |
| Projection Distance | 50ft (15m) max |
| Audio Electrical | |
| Streaming | Two-way |
| Compression | G.711 PCM 8 kHz/16 bits (A-Law/μ-Law) |
| Input/Output | Line Input / Line Output |
| Mechanical | |
| Casing | Die-cast aluminum chassis with polycarbonate dome bubble |
| Mounting Options | Ceiling, Wall |
| Dimensions | (Unit) Ø5.14" (130.5mm) x 2.24" H (57mm) (Packaged) 5.63" H (143mm) x 6.14" W (156mm) x 6.14" L (156mm) |
| Weight | (Unit) 1.45lbs (0.657kg) (Packaged) 1.92lbs (0.87kg) |
| On Board Storage | MicroSDXC slot up to 1TB (card not included) |
| Body Color | AV Costar White (Pantone® Cool Gray 1C) |

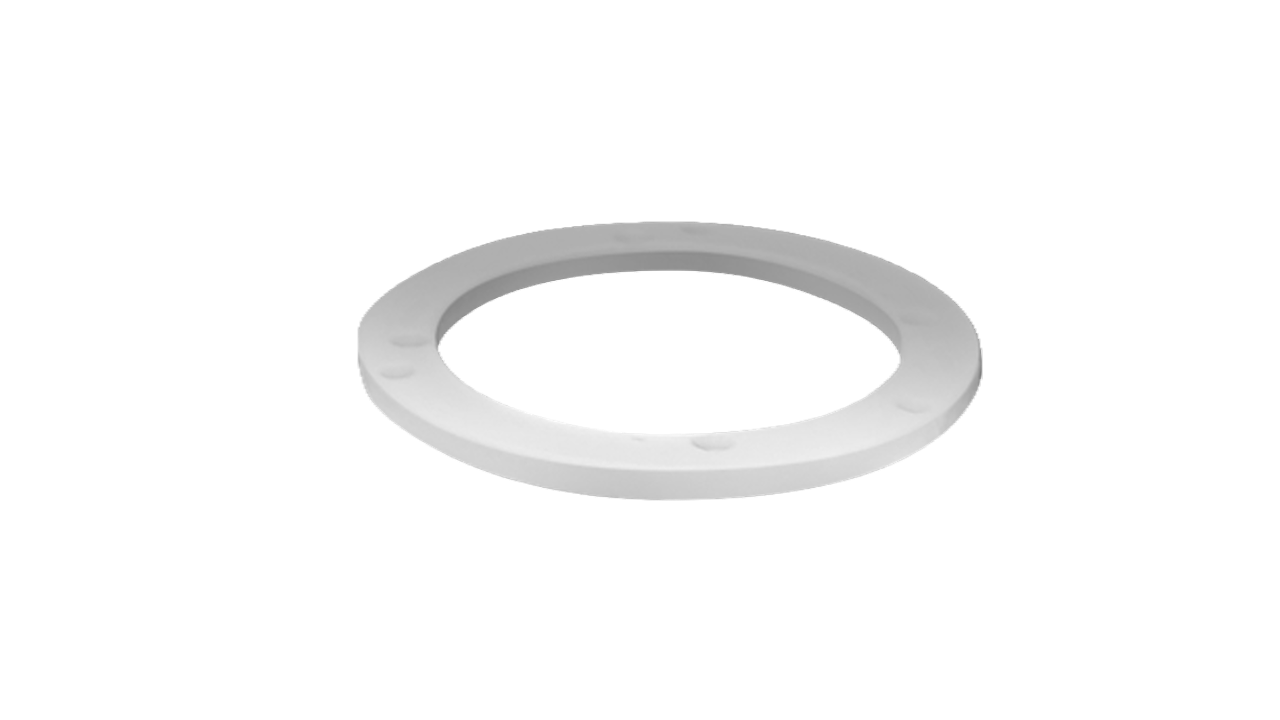

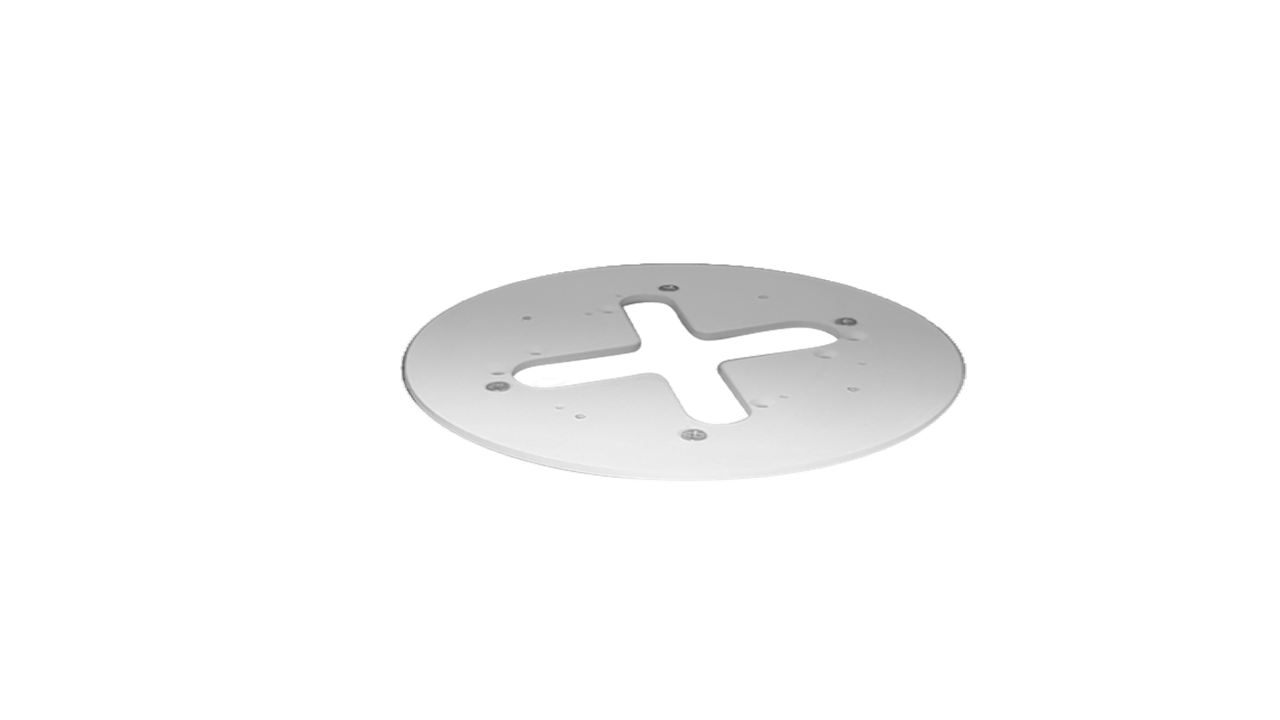

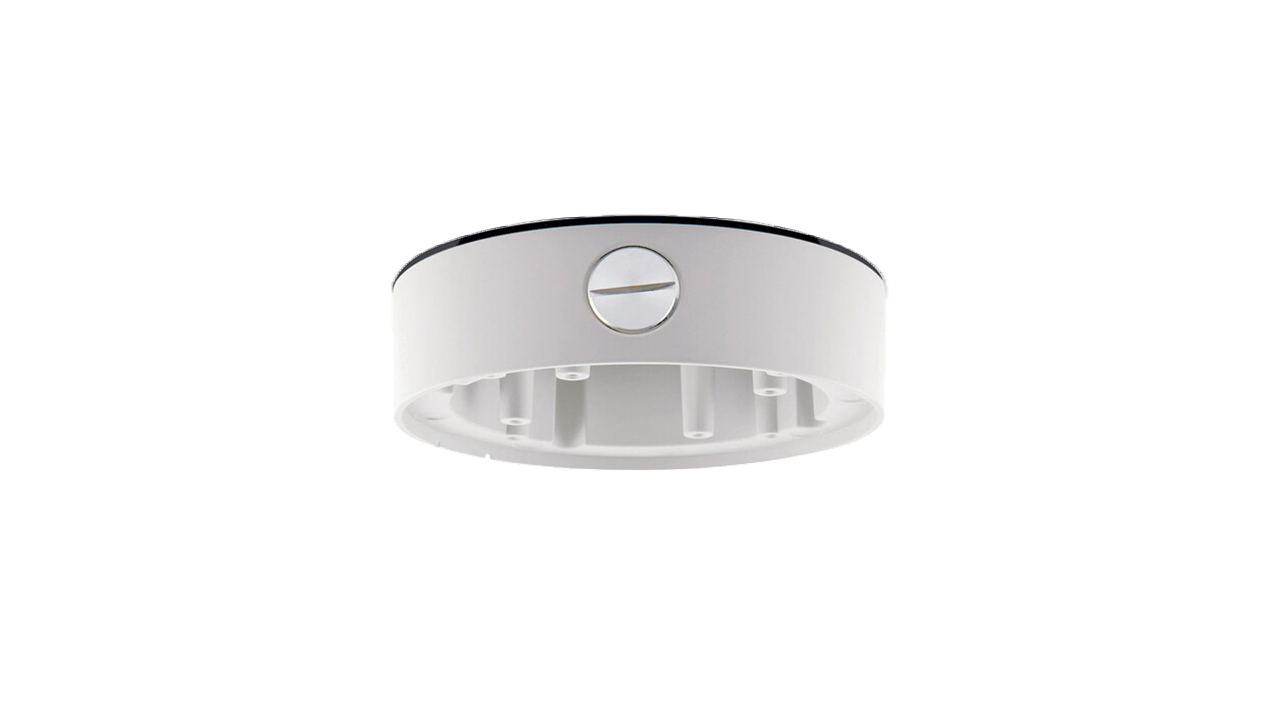

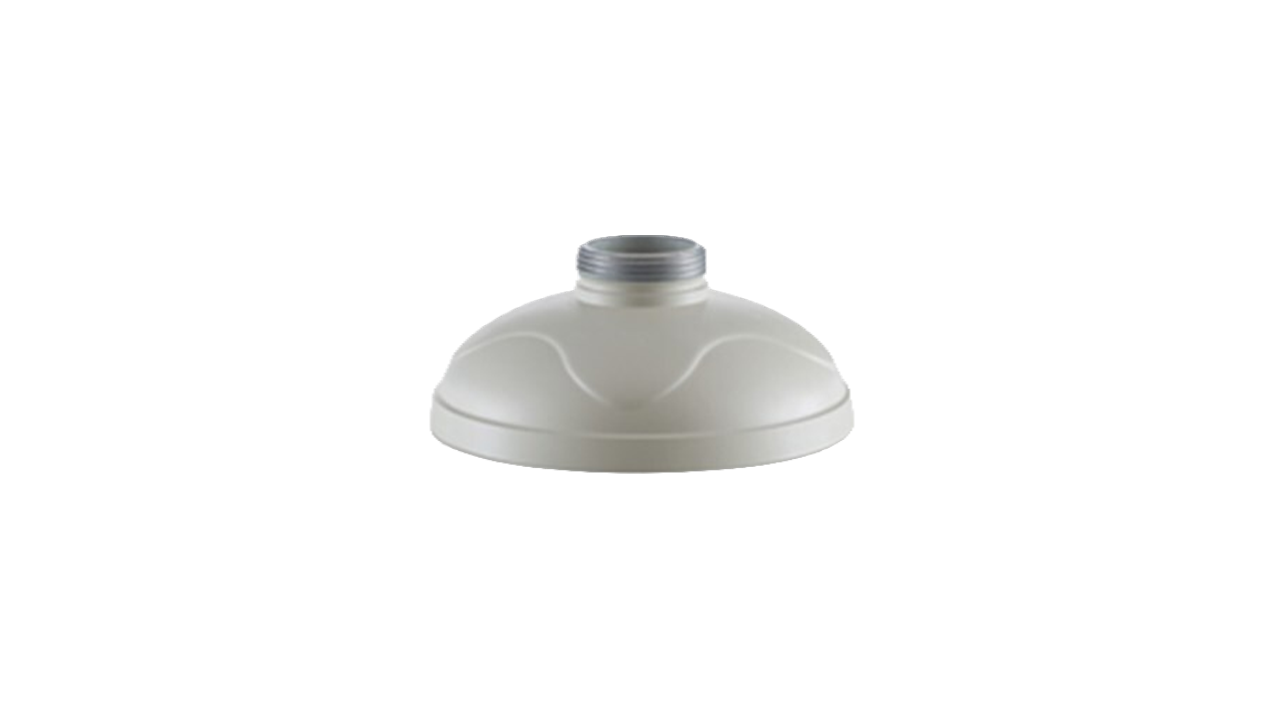

| Installation environment | Accessory configuration |
