Two in One MicroDome Duo_10MP (5MP x 2) | NDAA & TAA Compliant
5MP
IR Cut Filter Removable
True WDR
ONVIF
IP66
PoE
Two-way audio
NDAA Compliant| Camera Imaging Specifications | |
| Image Sensor (CMOS) | 10MP (5MP x 2) CMOS Progressive Sensor |
| Optical Format | 1/2.8" |
| Pixel Pitch | 2.0μm |
| Minimum Illumination | (Color (Day Mode)) 0.15 Lux (B/W (Night Mode)) 0.15 Lux |
| Full FOV Resolution | (Total) 5184 H x 1944 V(Per Sensor) 2592 H x 1944 V |
| Dynamic Range | Up to 100dB |
| Frame Rates | (At Max Resolution) 15fps (10MP)(Multi-Stream) (WDR Off) Up to 15fps (10MP) + 10fps (10MP) + 15fps (0.61MP)(Multi-Stream) (WDR On) Up to 15fps (10MP) + 10fps (10MP) + 15fps (0.61MP) |
| Lens (x2) | (2.8mm Lens) 2.8mm, F2.0, H-FOV = 98° |
| Programmability | |
| Optics | M12 lens and remote focus module |
| Low-Light Performance | NightView technology |
| Programmable Shutter Speed | Auto/manual 0.1ms ~ 500ms |
| Motion Detection | Real-time, 1024 detection zones |
| Privacy Masking | Unlimited |
| Backlight Compensation | Auto |
| White Balance Mode | Auto/manual |
| Gain Control | Auto |
| Flicker Control | 5Hz–255Hz adjustable |
| Scaling | (4MP) 1920x1080, 1280x960, 1280x720, 960x540, 800x600, 640x480, 640x360(10MP) 2592x1944, 2560x1440, 2304x1296, 2048x1536, 1920x1080, 1600x1200, 1296x972, 1280x960, 1280x720, 800x600, 640x480(16MP) 3840x2160, 2592x1944, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1296x972, 1280x960, 1280x720, 800x600, 640x480, 640x360 |
| Wide Dynamic Range | Adjustment between WDR and LDR modes |
| Efficiency | SNAPstream+ (Smart Noise Adaptation and Processing)Bit rate and bandwidth limitation control |
| Miscellaneous | Programmable brightness, contrast, sharpness, saturation, hue |
| Password | 16-digit ASCII character password |
| On-Screen Display (OSD) | Time/date/camera name/custom text |
| Compliance | |
| Industry Standard | ONVIF Profile S, G, and T conformant |
| Listings | UL60950-1, E489591 |
| FCC Compliance | 47 CFR 15 Class A |
| Environmental | RoHS, REACH, WEEE |
| Markings | (CE): EN55032 Class A, EN55035, EN61000-3-2, EN61000-3-3 |
| Mechanical | IK-10 (EN62262), IP66 (EN60529) |
| Data Transmission | |
| Compression Type | H.265/H.264 (MPEG-4, Part 10)/Motion JPEG21 levels of quality |
| Bit Rate Control | 4MP/10MP Models: 128K–8000K16MP Models: 512K–8000K |
| Smart Codec | Smart GOP/Smart ROI |
| Network Protocols | SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, UPnP, UDP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, QoS, DDNS, Zero Configure |
| Network Interface | 10/100/1000Mbps Ethernet, RJ45 |
| Max Camera Bandwidth | 18Mbps (9Mbps per sensor) |
| Multi-Streaming | 2 x H.265/H.264 stream, 1 x M-JPEG stream (per sensor) |
| Users | Live Viewing/Administrator for up to 10 clients |
| Event Management | |
| Event Trigger | Motion detection, tampering detection, alarm in |
| Notifications | Send a message via e-mail/FTP/NAS, SD Card Recording, Record JPG/MP4 |
| Environmental | |
| Operating Temperature | -40°C (-40°F) to +50°C (122°F) |
| Humidity | 0% to 90% (non-condensing) |
| Storage Temperature | -40°C (-40°F) to +60°C (140°F) |
| Electrical | |
| Alarm Input/Output | 1 input (wet contact)/1 output (wet contact) |
| Power Over Ethernet | PoE IEEE 802.3af, Class 3 |
| Auxiliary Power | 12-48V DC, 24V AC |
| Power Consumption | 10.5W max |
| Audio Electrical | |
| Streaming | Two-way |
| Compression | G.711 PCM 8 kHz |
| Input/Output | Line Input / Line Output |
| Mechanical | |
| Casing | Die-cast aluminum chassis with polycarbonate dome bubbleIP66 weather proof standardImpact resistant, IK-10 rated |
| Mount | Mount plate with electrical box adapter holes (included) |
| Gimbal | Easily adjustable, 3-axis w/360° pan, 90° tilt, and 360° z-axis |
| Dimensions | (Unit) 2.83" H (71.9mm) x 4.06" W (103mm) x 6.42" L (163mm)(Packaged) 3.74" H (95mm) x 4.72" W (120mm) x 7.09" L (180mm) |
| Weight | (Unit) 2.2lbs (1.0kg)(Packaged) 2.6lbs (1.2kg) |
| On Board Storage | MicroSDXC slot up to 1TB (card not included) |
| Body Color | AV Costar White (Pantone® Cool Gray 1C) |

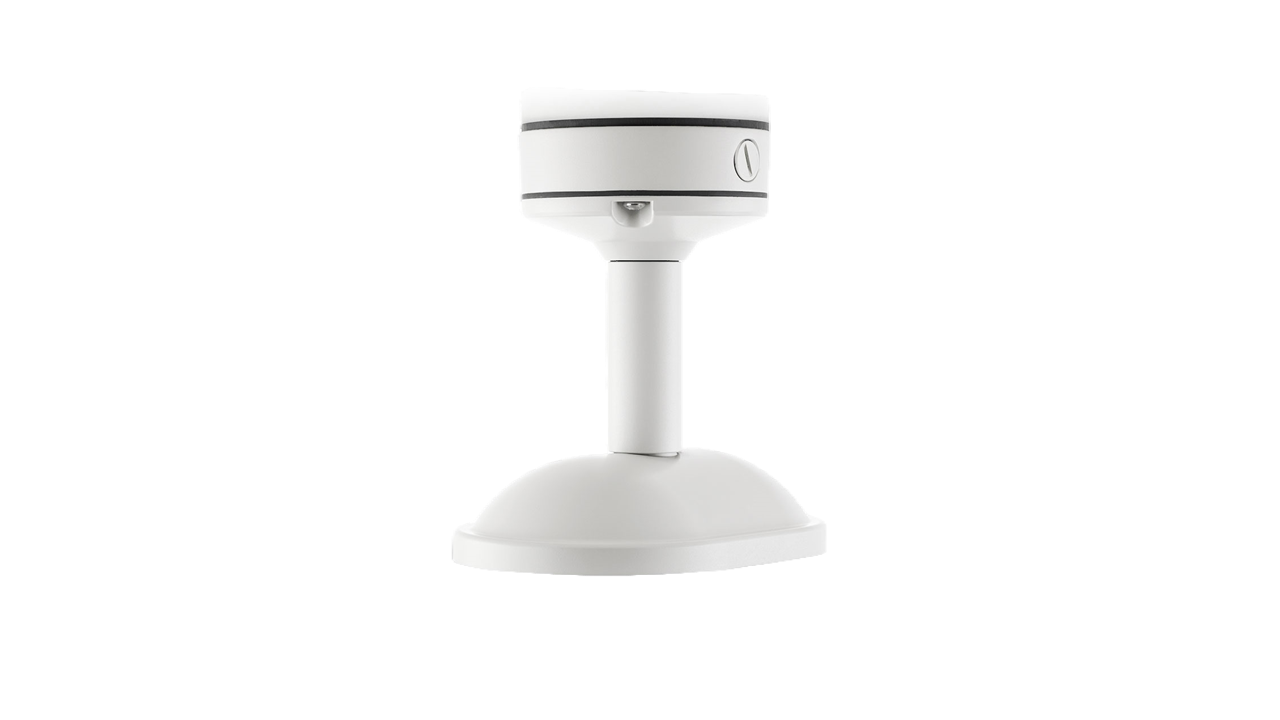

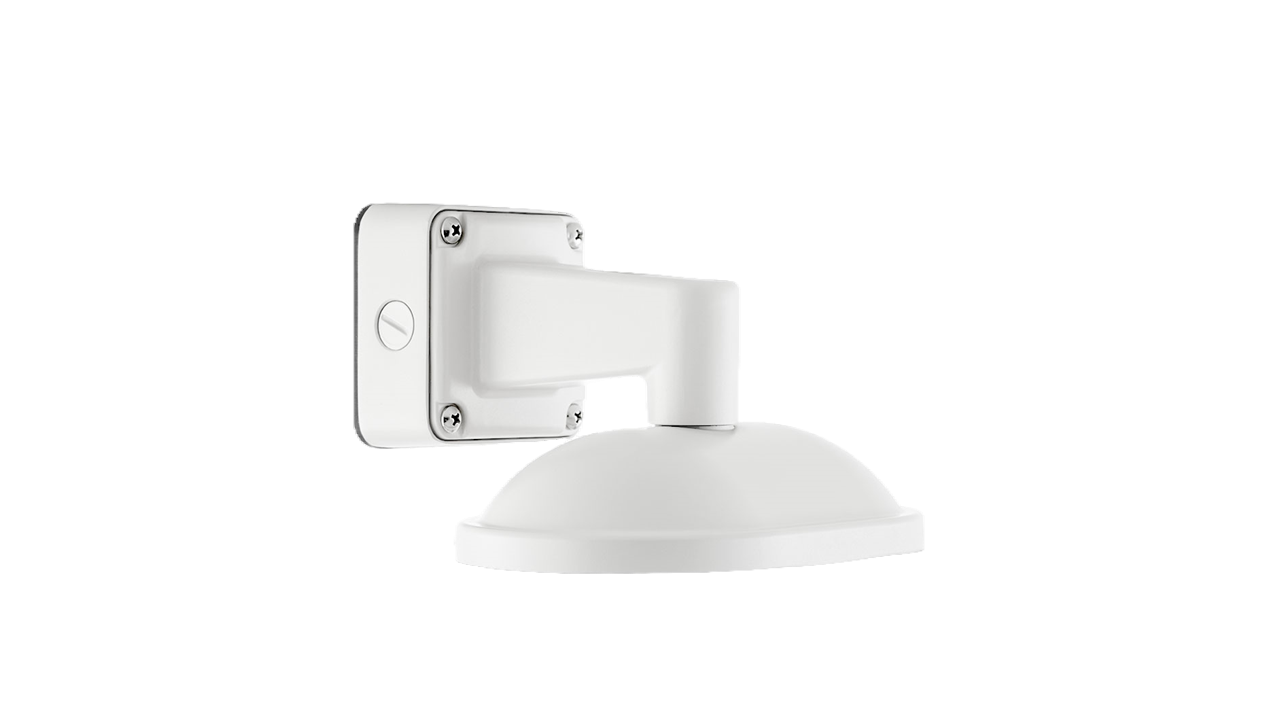

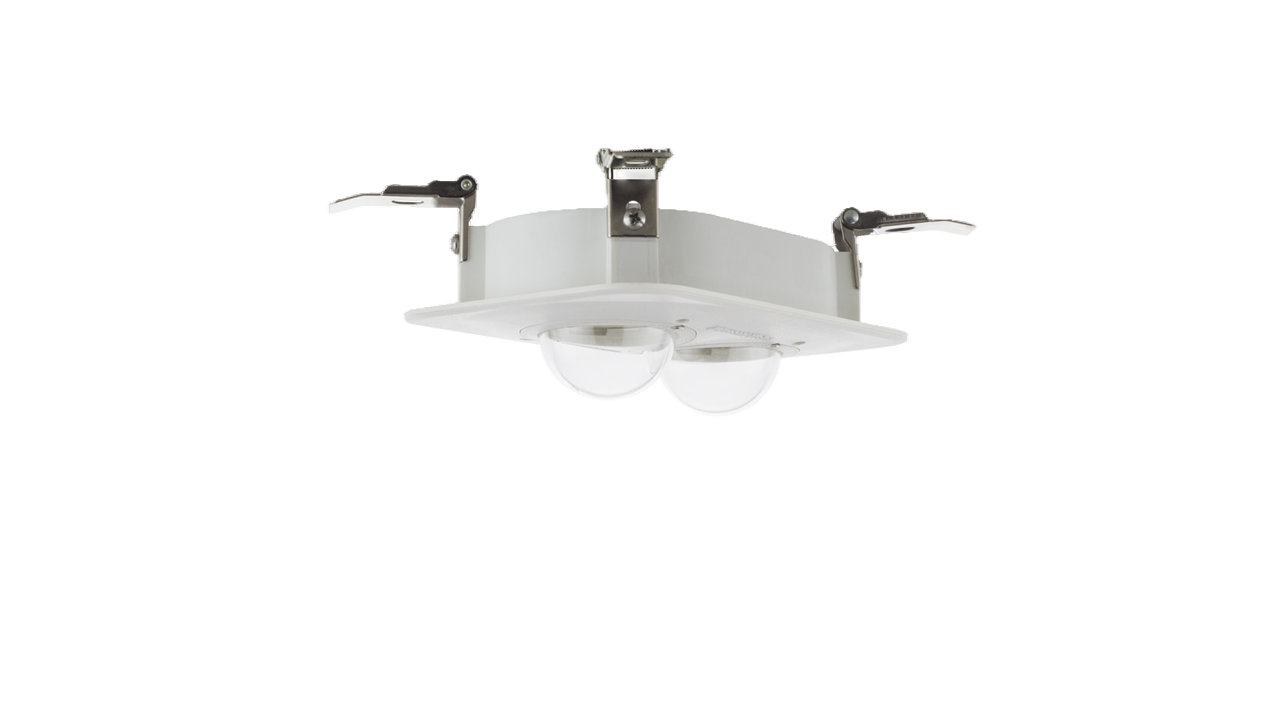

| Installation environment | Accessory configuration |
