| Video |
| Image Sensor |
1/2.8" CMOS Sensor |
| Max. Resolution |
1920 X 1080 |
| Scanning Mode |
Progressive Scan |
| Frame Rate |
TVI, AHD : 30ips@2MPCVBS : NTSC / PAL (for previewing video) |
| Lens Type |
Fixed-focal |
| Focal Length |
2.4mm |
| Aperture |
F2.0 |
| Iris Control |
Fixed Iris |
| Angular Field of View |
132.1º(H) 73.2º(V) 150.8º(D) |
| Min. Illumination |
COLOR : 0.1 luxB/W : 0.08 lux |
| S/N Ratio |
More than 50dB |
| Dynamic Range |
120dB (True WDR) |
| Electronic Shutter Speed |
Auto / Manual (1/30,1/25Sec ~ 1/30000Sec) / Anti-Flicker |
| Day and Night |
Yes (Electrical) |
| IR Distance (LEDs) |
N/A |
| Video Out |
1 HD BNC (Signal Switchable) |
| Function |
| AGC |
0 ~ 10 Level Adjustable |
| Brightness |
0 ~ 20 Level Adjustable |
| Sens-UP |
OFF / x2 ~ x32 |
| WDR(Wide Dynamic Range) |
OFF / FRAME / LINE (LOW, MIDDLE, HIGH) ROI Mode Available |
| Backlight Compensation(BLC) |
OFF/ON |
| HLC |
1 ~ 20 Level Adjustable (ALL DAY/NIGHT ONLY) |
| ACE(D-WDR/ATR-EX) |
OFF / LOW / MIDDLE / HIGH |
| Motion Detection |
OFF/ON (4 Zone) |
| Privacy Masking |
OFF/ON (24 Zone) |
| Day & Night |
Color/B&W/EXTERN |
| White Balance |
AUTO / AUTOext / AWC-SET / MANUAL (3,000K, 5,000K, 8,000K) |
| Digital Noise Reduction |
OFF / LOW / MIDDLE / HIGH |
| Mirror |
MIRROR, FLIP |
| D-ZOOM(EZOOM) |
x1 ~ x16 |
| Sharpness |
0~20 Level Adjustable |
| De-fog |
OFF/ON |
| Lens Shading(LSC) |
OFF / ON(0 ~ 100% Level Adjustable) |
| Environmental |
| Operating Temperature |
-10℃ ~ +50℃ (14℉ ~ +122℉) |
| Operating Humidity |
0% ~ 90% |
| Electrical |
| Power Source |
DC 12V |
| Power Consumption |
1.6W |
| Dimensions |

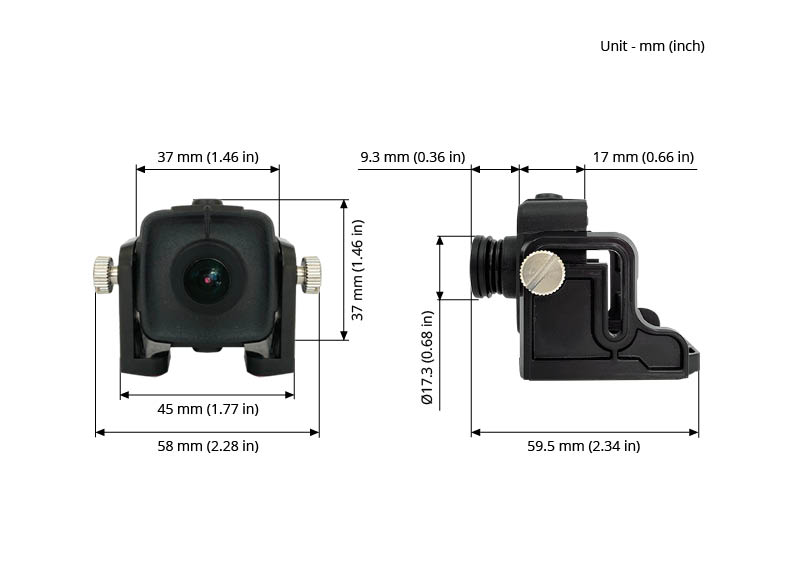

Camera Body Dimensions: 1.46" (W) x 1.46" (H) x 1.2" (D) With Bracket Attached: 2.28" (W) x 1.78" (H) x 2.33" (D) |
| Weight |
0.055kg (0.12lb) |
2MP
Fixed Lens
True WDR
ONVIF
NDAA Compliant
