H.265 4MP AI Speed Dome Camera (LightMaster NIR) | NDAA & TAA Compliant
Artificial Intelligence
LightMaster NIR
Zoom Lens
Heater
IR LED
AI Embedded
Easy Installation
ONVIF
NDAA Compliant
| Video | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 2688 X 1520 |
| Scanning Mode | Progressive Scan |
| Lens Type | AF Zoom Lens |
| Focal Length | 6.91 ~ 248.76mm |
| Aperture | F1.36~F4.6 |
| Iris Control | P-Iris |
| Angular Field of View | Wide : 61.8°(H), 36.3°(V), 70.3°(D) Tele : 2.4°(H), 1.3°(V), 2.7°(D) |
| Min. Illumination | Color : 0.06 lux @ F1.35 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 400 m / 1,312.3ft (2ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | - |
| Mirroring / Pivot | Horizontal / Vertical |
| Image Stabilizer | Yes (EIS) |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Object Metadata: Human, Vehicle, Face IDLA: Object Detection, Intrusion, Loitering, Line Crossing, Face Detection ETC: Video Motion Detection, Active Tampering Alarm |
| Video Out | 1 Terminal Block |
| Pan/Tilt/Rotate | |
| Pan Range | 360° (Endless) |
| Pan Speed | 0.02~240°/sec (preset 240°/sec) |
| Tilt Range | 200° (-10~190°) |
| Tilt Speed | 0.02~240°/sec (preset 240°/sec) |
| Preset | 256ea |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.264 - CBR / VBR, H.265 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 30ips : 2688 x 1520(WDR) |
| Supported Resolution | 2688 x 1520, 1920x1080, 1280x720, 640x360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 8 / 2 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP66, Heater |
| Operating Temperature | -40°C ~ +60°C (-40°F ~ +140°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 24VAC, PoE IEEE 802.3bt (Class 8) |
| Power Consumption | HEATER/IR OFF: 24V~, 1.5A, 27.1W, PoE, IEEE 802.3bt(Class 8), 26.4W HEATER/IR ON: 24V~, 2.8A, 52.9W, PoE, IEEE 802.3bt(Class 8), 54.2W |
| Approval | FCC, CE, KC |
| Mechanical | |

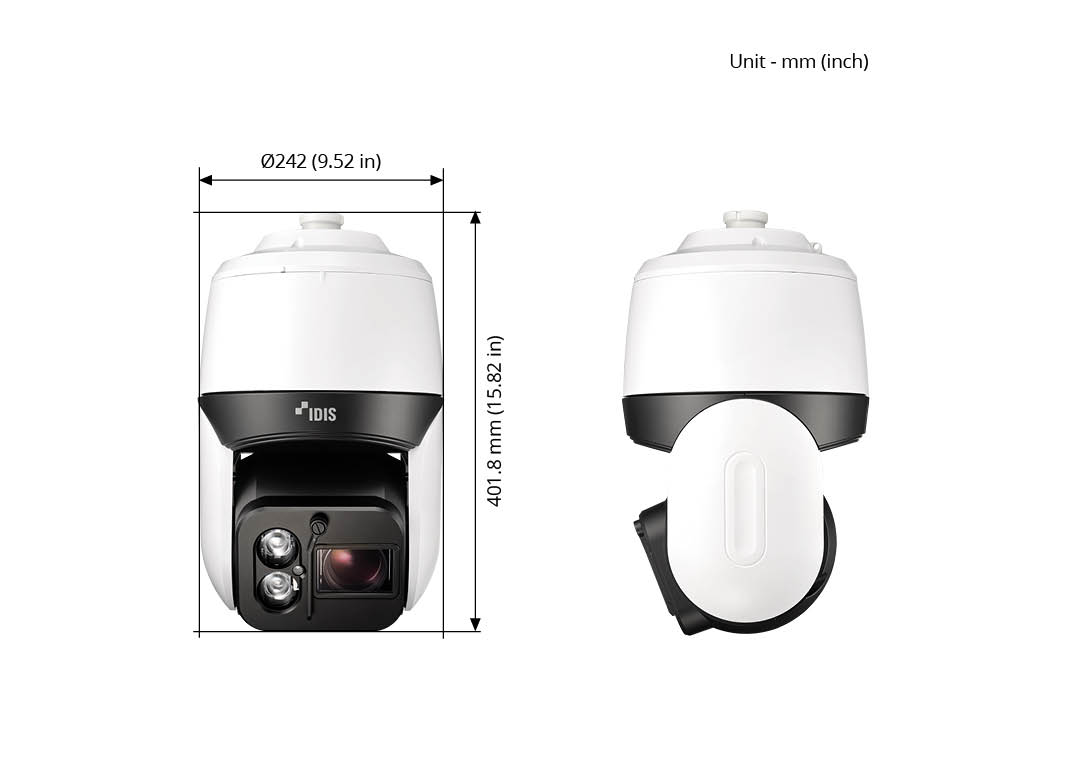

| Dimensions | Ø242mm x 401.8mm (Ø9.52" x 15.82") |
| Weight | 7.2kg (15.87 lbs) |
| Installation environment | Accessory configuration |
|
Wall |
Wall Mount
Model: DA-WM1400
|
|
Celling |
Ceilling Mount
Model: DA-CM1300
or
Ceilling Mount
Model: DA-CM1500
|
|
Pole |
Wall Mount
Model: DA-WM1400
+
Pole Mount
Model: DA-LM1100
|
|
Corner |
Wall Mount
Model: DA-WM1400
+
Corner Mount
Model: DA-RM1100
|
