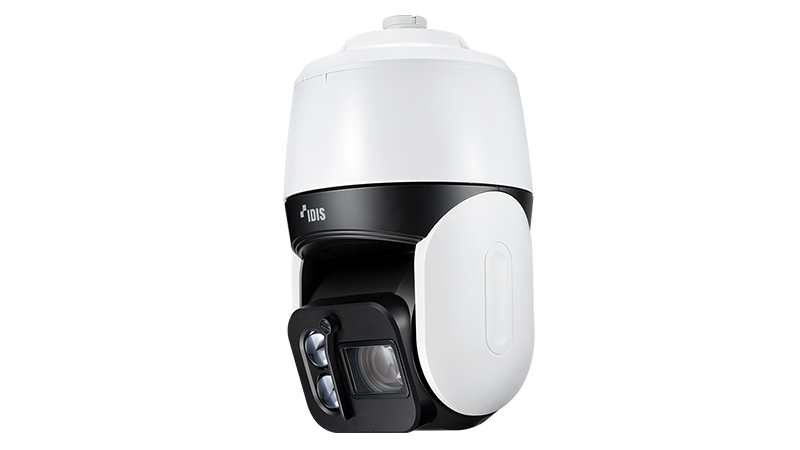

DC-S6681HRX

6MP 31x IR PTZ Camera | NDAA & TAA Compliant

  • Easy installation with DirectIP NVR
  • 6MP (3328 x 1872) resolution
  • AF optical zoom lens (f=6.5 - 202mm), 31x zoom
  • Two-way audio
  • Alarm in / out
  • IK10 / IP66 supports
  • Built-in heater
  • PoE (IEEE 802.3bt), 24V AC
  • Day and night (ICR)
  • True wide dynamic range (WDR)
  • Electronic image stabilization (EIS)
  • IR Distance (300 m/984.3ft)
  • Supports ONVIF
    6MP
    Zoom Lens
    Heater
    IR LED
    True WDR
    Easy Installation
    Two-way audio
    IP66
    PoE
    IR Cut Filter Removable
    Electronic Image Stabilization
    ONVIF
    NDAA Compliant
Video
Image Sensor 1/1.8" CMOS
Max. Resolution 3328 x 1872
Scanning Mode Progressive Scan
Lens Type AF Zoom Lens
Focal Length 6.5 ~ 202mm
Aperture F1.55 ~ F4.8
Iris Control DC Iris (Hall Sensor)
Angular Field of View Wide : 63º(H), 37.6º(V), 70.3º(D)
Tele : 2.4º(H), 1.3º(V), 2.7º(D)
Min. Illumination Color : 0.1 lux @ F1.55
B/W : 0 lux (IR LED ON)
Dynamic Range 120dB (True WDR)
Electronic Shutter Speed Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15)
Day and Night Yes (ICR)
IR Distance (LEDs) 300 m/984.3ft (2ea)
Image Setting Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control)
Backlight Compensation -
Mirroring / Pivot Horizontal / Vertical
Image Stabilizer Yes (EIS)
De-fog Yes
Privacy Masking 8 Zones
Intelligent Video Video Motion Detection, Active Tampering Alarm, Trip Zone
Video Out 1 Terminal Block
Pan/Tilt/Rotate
Pan Range 360° (Endless)
Pan Speed 0.02~240°/sec (preset 240°/sec)
Tilt Range 200° (-10~190°)
Tilt Speed 0.02~240°/sec (preset 240°/sec)
Preset 256ea
Network
Video Compression H.265, H.264 (MP), M-JPEG
Intelligent Codec Yes
Bitrate Control H.264 - CBR / VBR, H.265 - CBR / VBR
Audio Compression ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way Audio Yes
IP Camera Protocol DirectIP 2.0, ONVIF Profile S/T
Max. Frame Rate 30ips : 3328 x 1872(WDR)
Supported Resolution 3328 x 1872, 1920x1080, 1280x720, 640x360
Multi-video Streaming Quadruple Streaming
Network Protocols DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2
Security Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption
Ethernet RJ45 (10/100BASE-T)
Recording Session Buffer (NLTSrec) Yes (Up to 60MB)
Edge Storage micro SD/SDHC/SDXC, Smart Failover (Up to 512GB)
Alarm and Event
Trigger Event Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone
Event Notification Remote S/W, Email (with Image)
Audio Alarm Yes
Audio In / Out 1 / 1
Alarm In / Out 8 / 2
Environmental
Vandal Proof Casing IK10
Outdoor Ready IP66, Heater
Operating Temperature -40°C ~ +55°C (-40°F ~ +131°F)
*Starting up at above -20°C (-4°F)
Operating Humidity 0% ~ 90%
Electrical
Power Source 24VAC, High-PoE (75W)
Power Consumption HEATER, IR LED OFF
24V~, 1.2A, 21.1W, 50/60Hz
High-PoE, 50-57V, 20.3W

HEATER, IR LED ON
24V~, 3.4A, 65.8W, 50/60Hz
High-PoE, 50-57V, 60.0W
Approval FCC, CE, KC
Mechanical

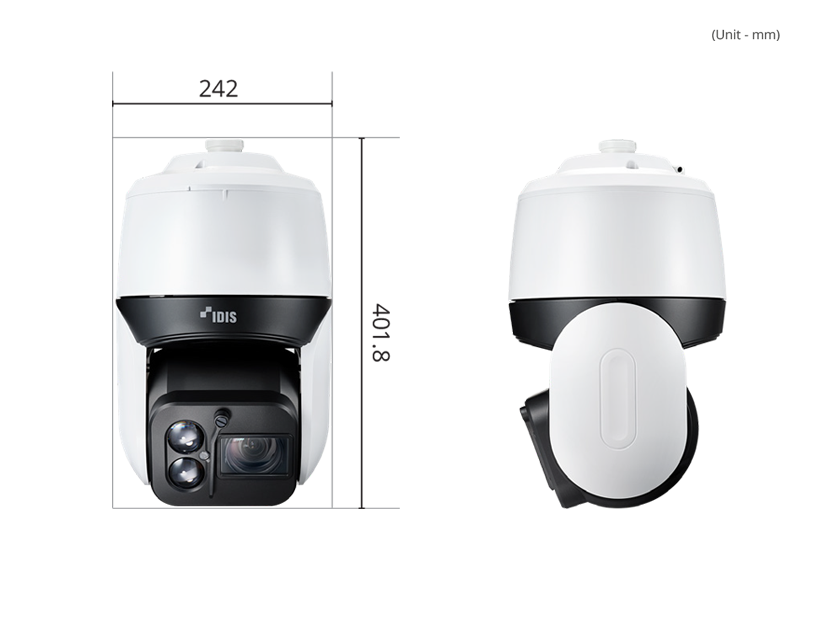

Dimensions Ø242mm x 401.8mm (Ø9.52" x 15.82")
Weight 7.4kg (16.31 lbs)
Installation environment Accessory configuration

Wall

Wall Mount
Model: DA-WM1400

Celling

Ceilling Mount
Model: DA-CM1300

or

Ceilling Mount
Model: DA-CM1500

Pole

Wall Mount
Model: DA-WM1400

+

Pole Mount
Model: DA-LM1100

Corner

Wall Mount
Model: DA-WM1400

+

Corner Mount
Model: DA-RM1100
