8MP Vandal-Resistant IR Dome Camera
8MP
Fixed Lens
Weather Proof
IR LED
True WDR
AI Embedded
Two-way audio
IP67
PoE
IR Cut Filter Removable
Easy Installation
ONVIF
| Video | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 3840 x 2160 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | f=3.3mm |
| Aperture | F2.0(3.3mm) |
| Iris Control | Fixed Iris |
| Angular Field of View | 101.3˚ (H) 54.5˚(V) 119.7˚(D) (f=3.3mm) |
| Pan/Tilt/Rotate Range | Pan: -170° ~ 170°, Tilt: -5° ~ 67.5°, Rotate: -109° ~ 109° |
| Min. Illumination | COLOR : 0.2 lux @ F2.0 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB(True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 30m / 98.4ft (4ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | On / Off |
| Image Stabilizer | - |
| De-fog | - |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | - |
| Network | |
| Video Compression | H.265, H.264 (MP) M-JPEG |
| Intelligent Codec | Supported |
| Bitrate Control | H.265 - CBR / VBR, H.264 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Two-way audio(DC-D4811WRX only) |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S |
| Max. Frame Rate | 30ips : 3840 x 2160 15ips : 3840 x 2160(WDR) |
| Supports Resolution | 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x, IP Filtering, HTTPS |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 256GB) |
| ALARM AND EVENT | |
| Trigger Event | Motion Detection, Alarm in, Audio detection(DC-D4811WRX only), Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Pre-recorderd Voice Alert(IDIS protocol) | On / Off |
| Audio In/ Out | 1 / 1 (DC-D4811WRX only) |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operating Temperature | -20°C ~ 55°C(-4°F ~ 131°F)*Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE (IEEE 802.3af Class 3) |
| Power Consumption | PoE, (IEEE 802.3af Class 3), 9.0W |
| Approval | FCC, CE, KC |
| Mechanical | |

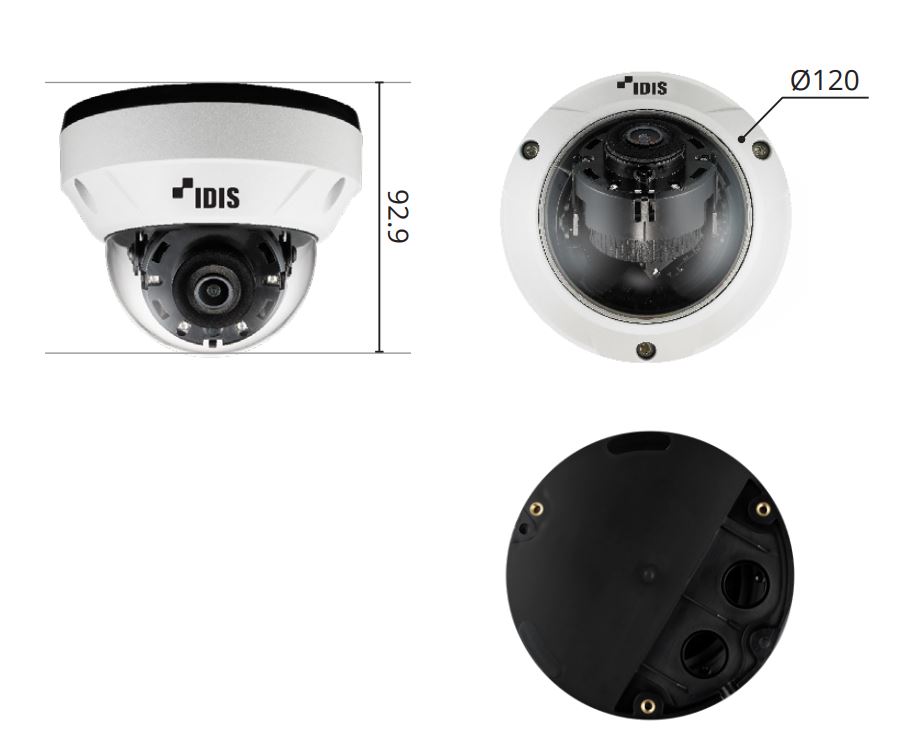

| Dimensions (Ø x H) | Ø120.6 x 92.9mm |
| Weight | 0.48kg(1.06lb) |
