AV12CFE-25012MP Fish Eye |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Specifications
| Camera Imaging Specifications | ||
| Image Sensor (CMOS) | 12MP CMOS Progressive Sensor | |
| Optical Format | 1/1.7" | |
| Minimum Illumination |
(Color (Day Mode)) 0.3 Lux (B/W (Night Mode)) 0.09 Lux, IR sensitive |
|
| Full FOV Resolution | 4000 H x 3000 V 12MP (2992 H x 2992 V 9MP effective) | |
| Scaling | Yes | |
| IR Illumination | Yes | |
| Dynamic Range | 100dB Digital WDR | |
| Frame Rates |
(Single Stream) Up to 30fps Max Resolution All Stream 1 Dewarp Modes H.265/H.264 (Dual Streams) Up to 15fps Max Resolution All Stream 1 Dewarp Modes H.265/H.264 + 15fps Max Resolution All Stream 2 Dewarp Modes H.265/H.264 |
|
| Lens | (Fisheye Lens) 1.97mm, F2.3, H-FOV 180°, V-FOV 180° | |
| Programmability | ||
| Optics | Fisheye Lens | |
| Low-Light Performance | NightView technologyIR Illuminators | |
| Programmable Shutter Speed | Auto/Manual, shutter time: 1 ~ 1/100000s | |
| Motion Detection | Up to 5 Areas | |
| Privacy Masking | Up to 5 Areas | |
| Backlight Compensation | Auto | |
| White Balance Mode | Auto/manual | |
| Gain Control | Auto | |
| Image Rotation | Horizontal and Vertical Mirror (Independent or Combined) | |
| Scaling |
(Stream 1) (Ceiling Perspective) Fisheye Overview: 2992x2992, 2048x2048, 1280x1280 PTZ: 2048x2048, 2048x1536, 1920x1080 Quad View: 3584x2688, 3584x2016, 2048x2048, 2048x1536, 1920x1080 Panorama: 4096x1024, 3584x1008, 2560x720 Double Panorama: 3584x2688, 3584x2016, 2560x1920, 2560x1440 Panorama PTZ: 3584x1344, 2560x960, 1920x720 Double Panorama PTZ: 3584x2688, 2560x1920, 1920x1440 (Wall Perspective) Fisheye Overview: 2992x2992, 2048x2048, 1280x1280 PTZ: 2048x2048, 2048x1536, 1920x1080 Panorama: 3584x1344, 3584x1008, 2560x960, 2560x720, 1920x1080 Double Panorama: 3584x2688, 3584x2016, 2560x1920, 2560x1440 (Stream 2) (Ceiling Perspective) Fisheye Overview: 2992x2992, 2048x2048, 1280x1280, 960x960 PTZ: 2048x2048, 1920x1080, 1280x1280, 960x960 Quad View: 2560x1920, 2560x1440, 2048x2048, 2048x1536, 1920x1080, 960x960 Panorama: 2560x720, 2048x512 Double Panorama: 2560x1920, 2560x1440 Panorama PTZ: 2304x864, 1920x720, 1280x480 Double Panorama PTZ: 2048x1536, 1024x768 (Wall Perspective) Fisheye Overview: 2992x2992, 2048x2048, 1280x1280, 960x960 PTZ: 2048x2048, 1920x1080, 1280x1280, 960x960 Panorama: 2560x960, 2560x720, 1920x1080, 960x540 Double Panorama: 2560x1920, 2560x1440 |
|
| Wide Dynamic Range | 100dB Digita | |
| Miscellaneous | Color saturation, brightness, sharpness, contrast, white balance, day/night threshold, exposure control (including automatic gain control), hue, GOP length | |
| On-Screen Display (OSD) | Time / Date / Camera Name / Custom Text | |
| Display/Dewarp Modes | Fisheye Overview, PTZ, Quad View, Panorama, Double Panorama, Panorama PTZ, Double Panorama PTZ | |
| Data Transmission | ||
| Compression Type | H.265/H.264 (MPEG-4, Part 10)/Motion JPEG | |
| Bit Rate Control |
(Stream 1): Variable 500-12000 Kbps; Max 500-11000 Kbps; Constant 500-11000 Kbps (Stream 2): Variable 500-8000 Kbps; Max 500-7000 Kbps; Constant 500-7000 Kbps |
|
| Transmission Protocols |
TCP/IP, UDP, ICMP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS, SSH, SSL, SMTP, FTP, RTSP, UPnP, DHCP, DNS, NTP, RTP, RTCP, DynDNS support, 802.1x 10/100Base-TX Auto-adaptive Ethernet network interface, RJ45 |
|
| Network Protocols | SNMP, HTTP, HTTPS, IPv6, IPv4, SSL, TCP/IP, UPnP, UDP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, FTP, 802.1x, QoS, DDNS, Zero Configure | |
| Multi-Streaming | 2 x H.265/H.264 stream, 1 x M-JPEG stream | |
| Users | Live viewing/Administrator for up to 31 clients | |
| Event Management | ||
| Event Trigger | Motion Detection, Alarm Handler, Tampering Alarm, Network Failure | |
| Notifications | Trigger Alarm Output, E-mail, SMTP, FTP, Record Video to SD Card and Network Storage | |
| Compliance | ||
| Industry Standard | ONVIF Profile S, G, T conformant | |
| Listings | UL 62368-1, E489591 | |
| FCC Compliance | 47 CFR FCC Part 15B Class A | |
| Environmental | RoHS, WEEE | |
| Markings | (CE): EN55032, EN55035,EN61000-3-2,EN61000-3-3 Class A | |
| Mechanical | IK-10 (IEC62262), IP67 (IEC60529) | |
| Environmental | ||
| Operating Temperature | -40°C (-40°F) to 55°C (131°F) | |
| Humidity | 0% to 90% (non-condensing) | |
| General Electrical | ||
| Alarm Input/Output | 1 x input (wet contact)/1 x output (wet contact) | |
| Power Over Ethernet |
PoE IEEE 802.3at, Class 4 Total PoE solution (no external power requirement) |
|
| Auxiliary Power | 12VDC | |
| Power Consumption | 15W max | |
| IR Illuminator | ||
| LEDs | 6pcs, independently configurable | |
| Projection Distance | 50ft (15m) max | |
| Audio Electrical | ||
| Streaming | Two-way | |
| Compression | G.711 PCM 8 kHz/16 bits (A-Law/μ-Law) | |
| Input/Output | Line Input / Line Output | |
| Mechanical | ||
| Casing | Die-cast aluminum chassis with polycarbonate dome bubble | |
| Mounting Options | Ceiling, Wall | |
| Dimensions |
(Unit) Ø5.14" (130.5mm) x 2.24" H (57mm) (Packaged) 5.63" H (143mm) x 6.14" W (156mm) x 6.14" L (156mm) |
|
| Weight |
(Unit) 1.45lbs (0.657kg) (Packaged) 1.92lbs (0.87kg) |
|
| On Board Storage | MicroSDXC slot up to 1TB (card not included) | |
| Body Color | AV Costar White (Pantone® Cool Gray 1C) | |
12MP
IR Cut Filter Removable
ONVIF
IP67
PoE
Two-way audio
NDAA Compliant

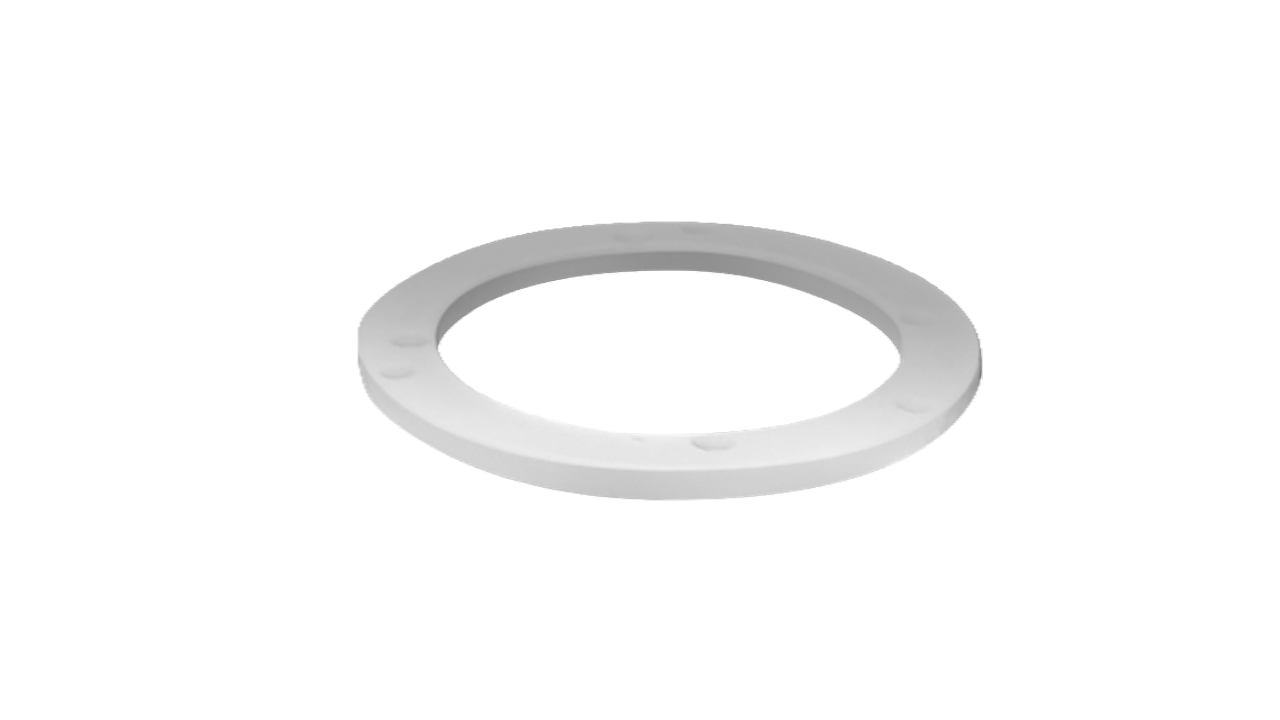

TAA CompliantPRODUCT IMAGE
DIMENSIONS
